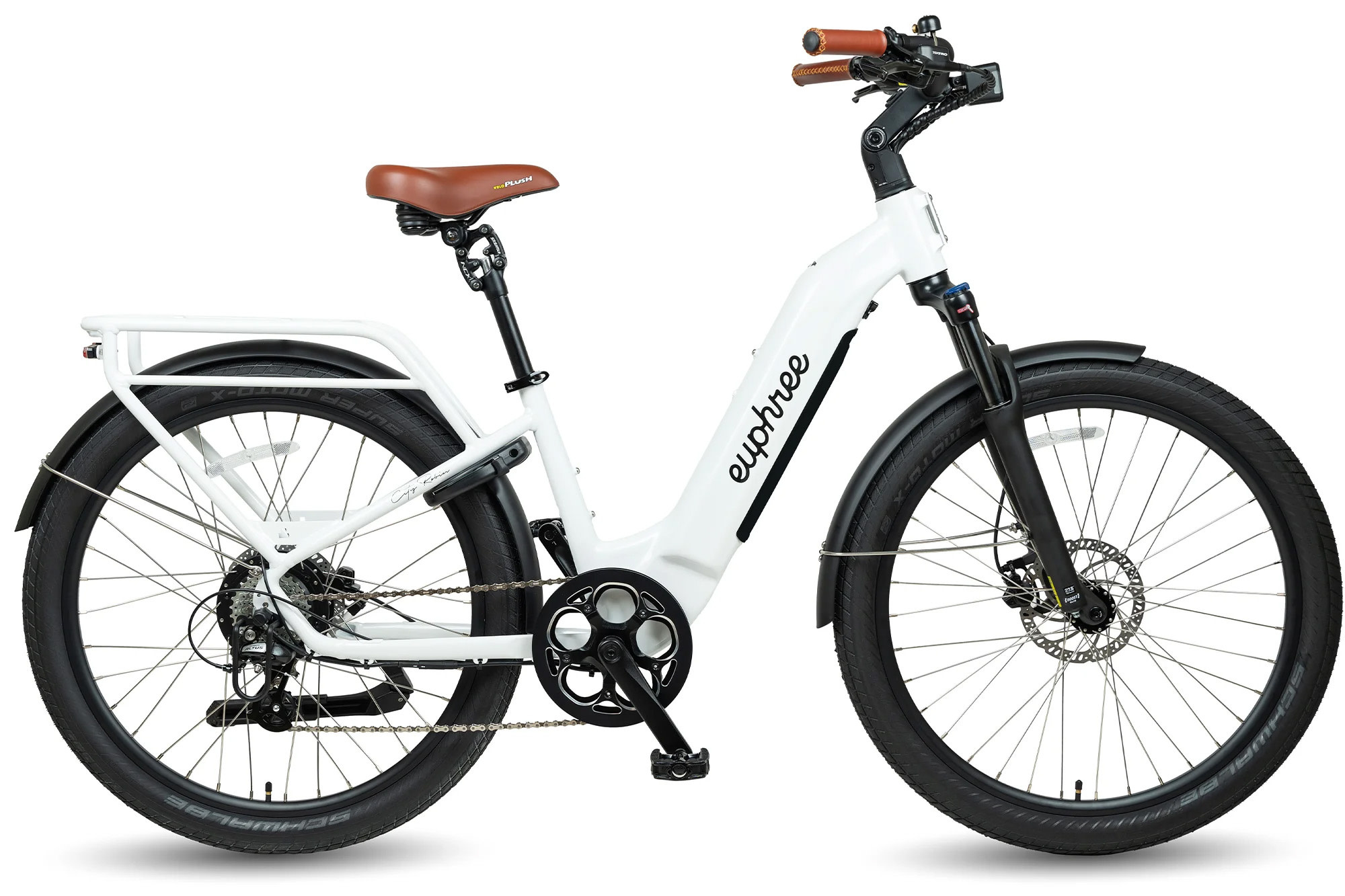

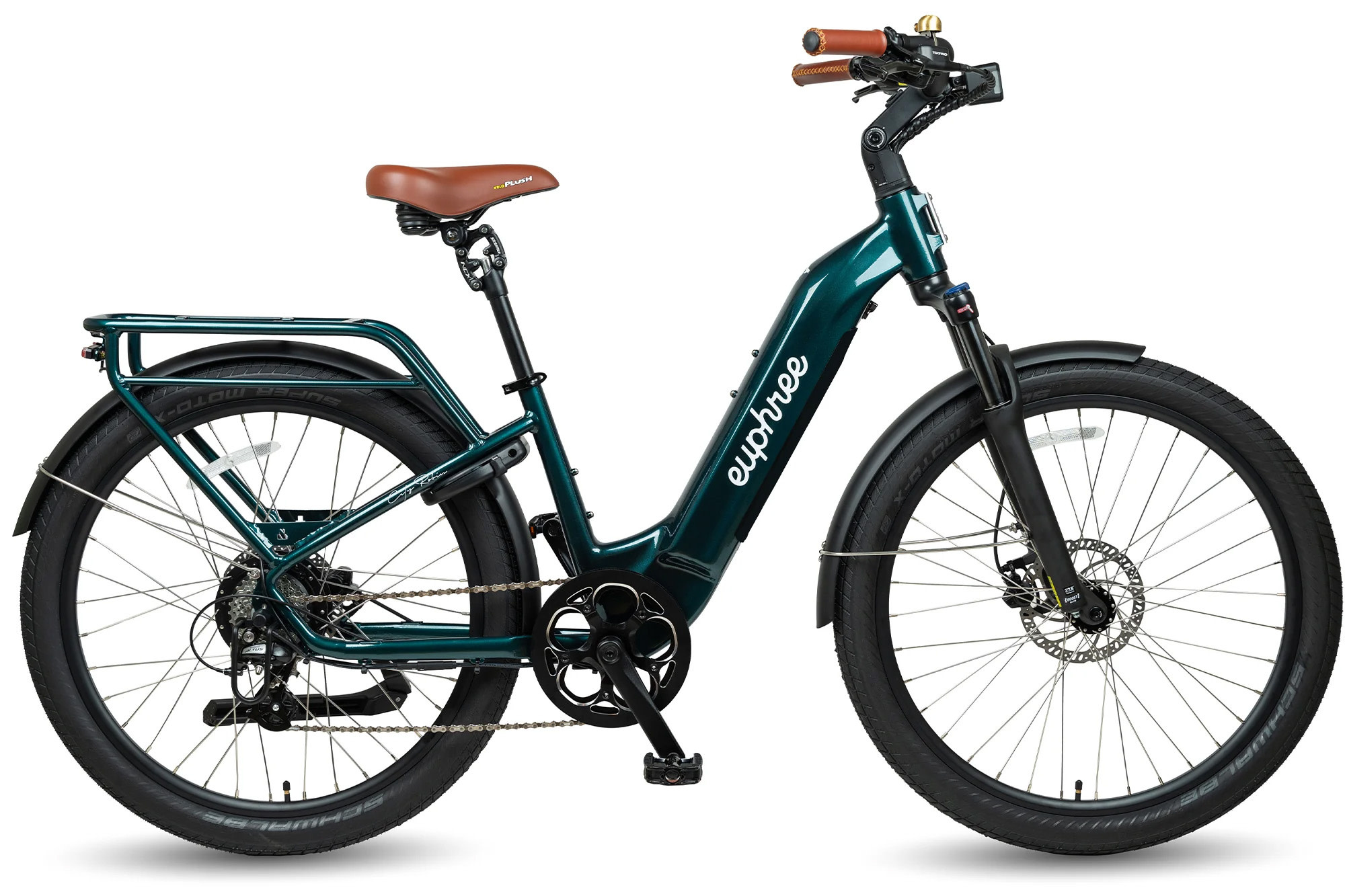

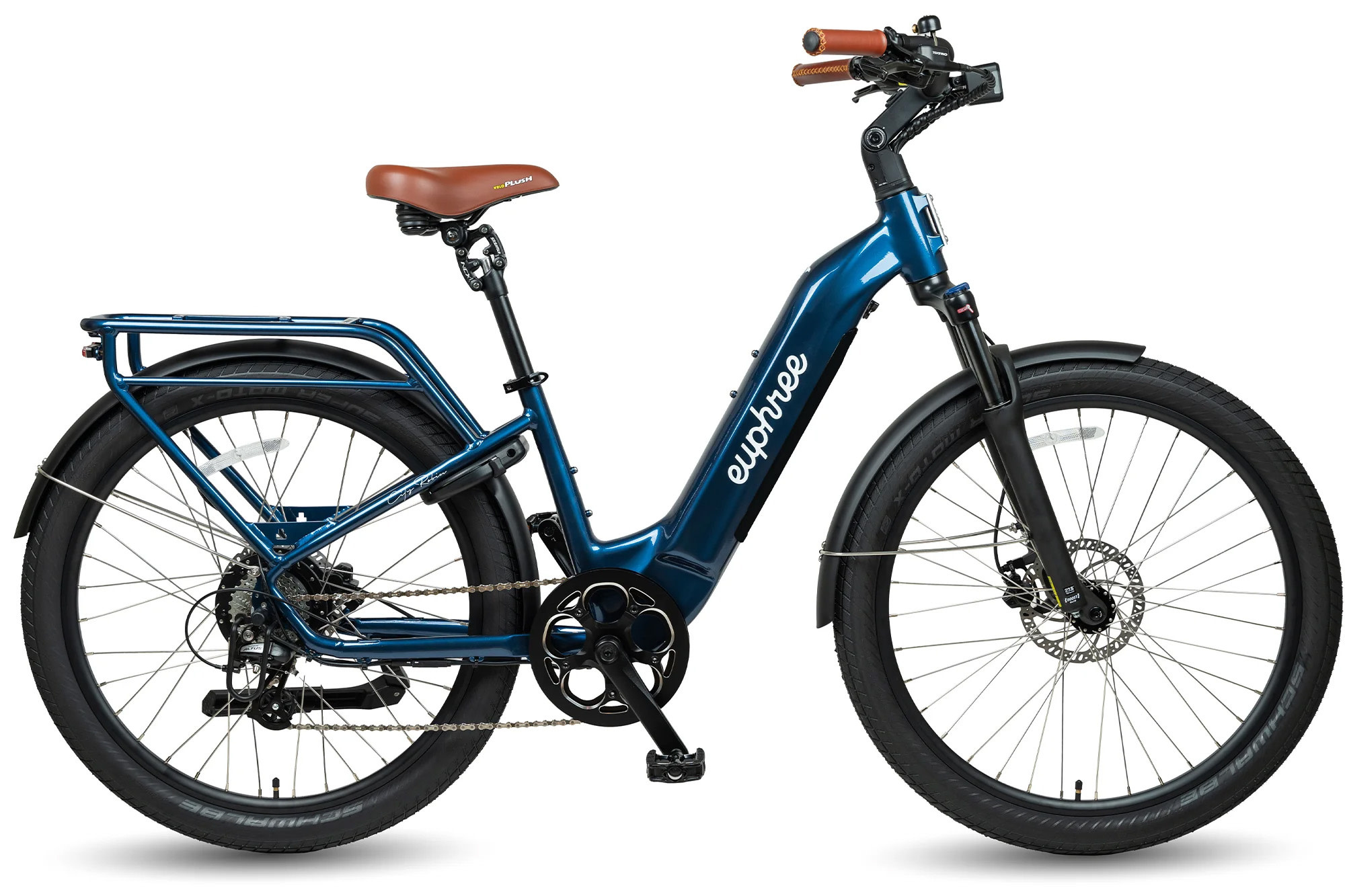

Euphree City Robin X+ Ebike

Product description

General Information

• Model: City Robin X+
• Range: Up to 60 miles
• Speed: 28 mph max
• Weight: 64 lbs
• Total Weight Capacity: 350 lbs
• Rider Height: 5’2” - 6’0”
• Sensor System: Torque / Cadence
• Safety Certifications: SGS Certified, UL 2849

Frame

• Frame Material: Aluminum 6061 Alloy
• Frame Style: Step Through
• Rear Rack: Welded in-frame

Drivetrain

• Brakes: Tektro E350 Hydraulic Brakes
• Brake Lever: Adjustable with motor cut-off
• Brake Rotor: 180 mm front & rear
• Derailleur: Shimano Altus, 7-Speed
• Freewheel: 7-speed, 11 x 28T gearing
• Chain: KMC Z7 Stainless Steel
• Crank Set: Aluminum Alloy, 170 mm
• Chainring: 50T, Double sided
• Pedals: Aluminum with Rubber Grips

Suspension & Wheelset

• Front Fork: SR Suntour XCM 32 Boost, 100 mm travel, preload & lockout adjustment
• Tires: Schwalbe Super Moto X 27.5 x 2.4”
• Rim: Double Walled Aluminum
• Spokes: 13G Front, 12G Rear
• Front Hub: Thru Axle

Electronic

• Battery: 48V, 14Ah, 672Wh
• Controller: Euphree Custom 48V, 20 Amp in-frame
• Display: Left Side Color LCD Display
• Headlight: 200 Lumens Dual Beam LED
• Rear Light: Brake Light Signal, 220° Visibility
• Charger: 48V, 3 Amp Fast Charge
• Throttle: Thumb Throttle, Left
• USB Port: Type C USB Charging

Cockpit

• Handlebar: Curved Aluminum Alloy, 700mm
• Grips: Faux Leather Ergonomic Locking Grips
• Stem: Adjustable Aluminum Alloy, 90 mm
• Phone Mount: SP Connect Compatible
• Saddle: Velo Wide Comfort
• Seatpost: SR Suntour NCX Suspension, 350mm

Accessories

• Fenders: Aluminum, Full Coverage
• Kickstand: Aluminum Alloy, Adjustable
• Rear Rack: Welded In-frame

Weight & Load

• Bike Weight: 64 lbs
• Rider Max Capacity: 350 lbs
• Front Rack Capacity: 30 lbs
• Rear Rack Capacity: 100 lbs

Certifications

• Battery Certification: UL 2271
• Motor Certification: UL 2849
