Product description

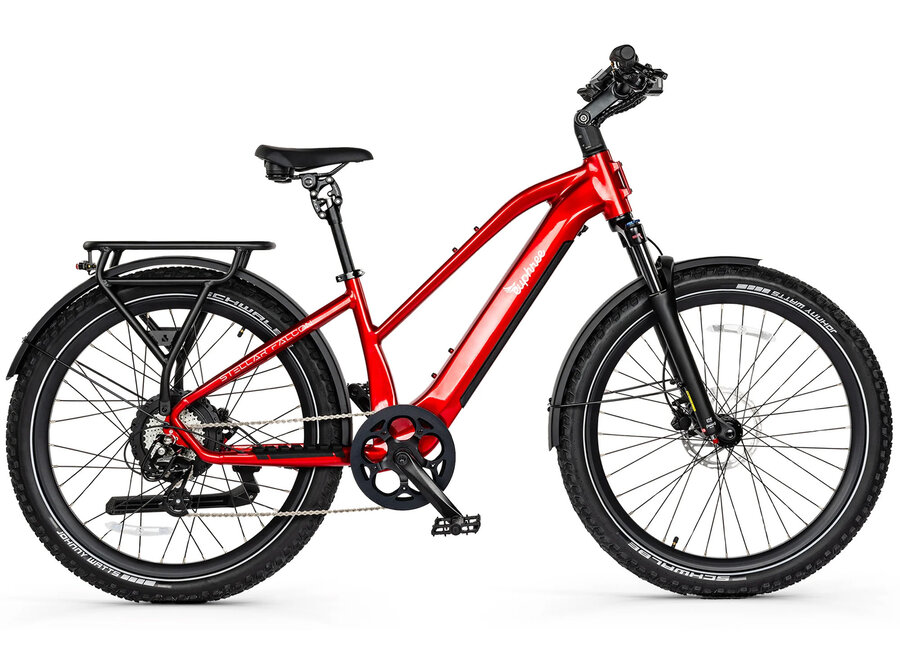

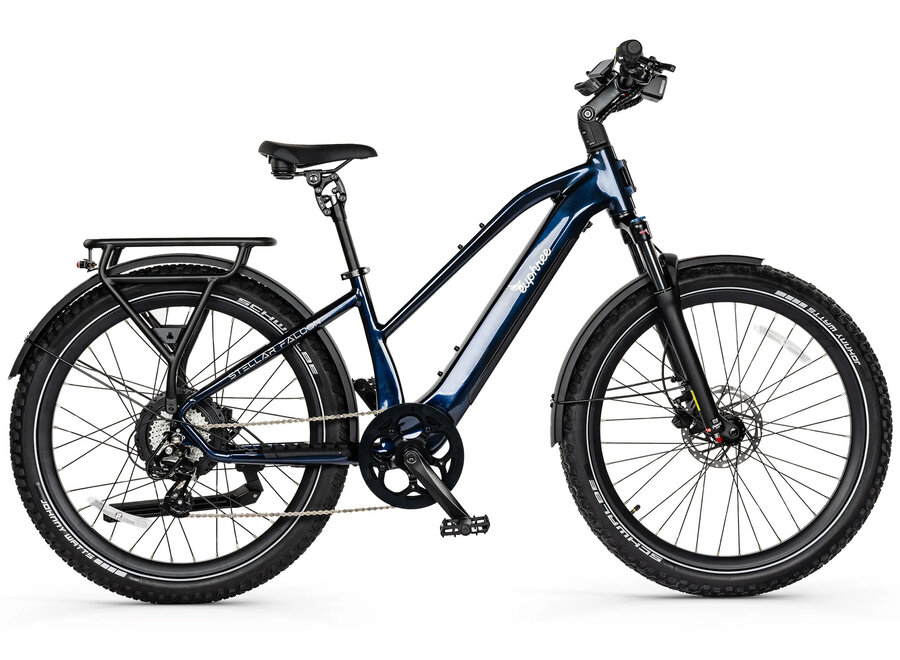

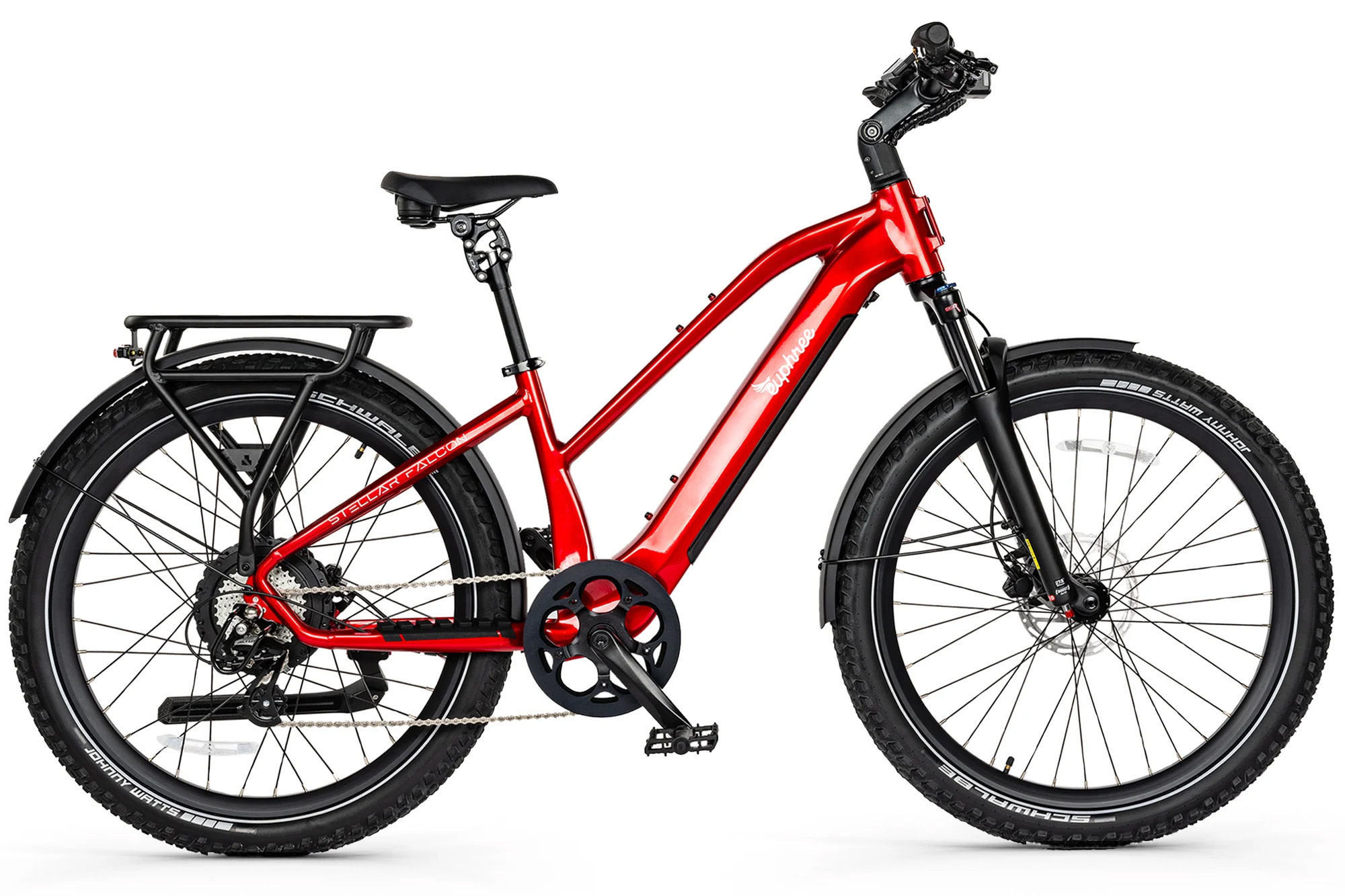

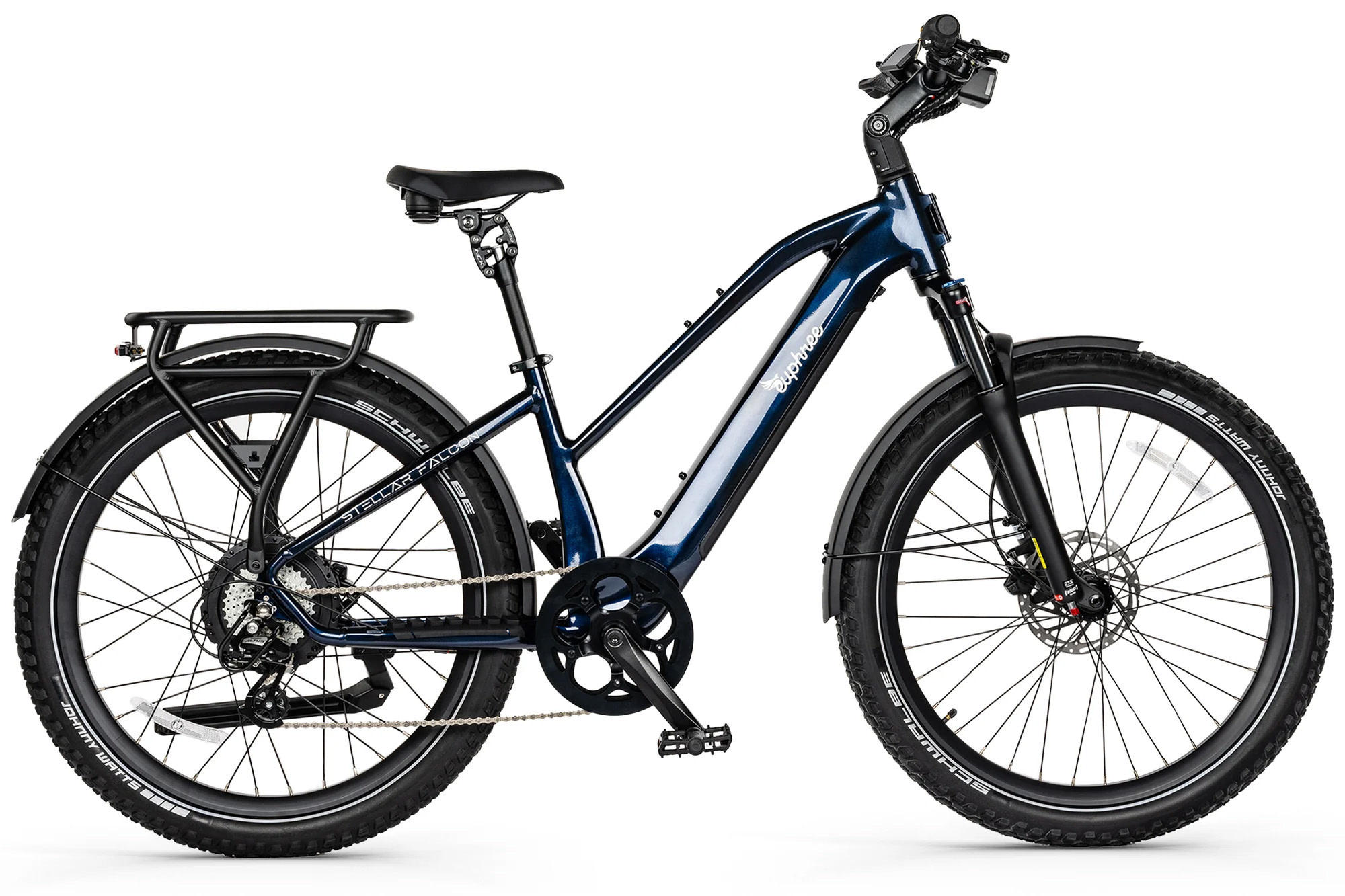

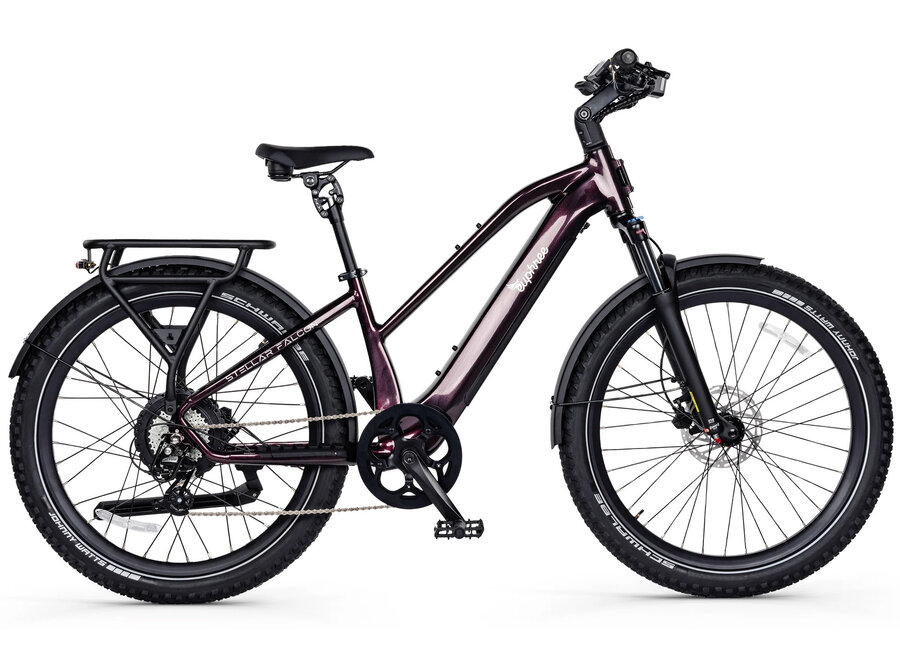

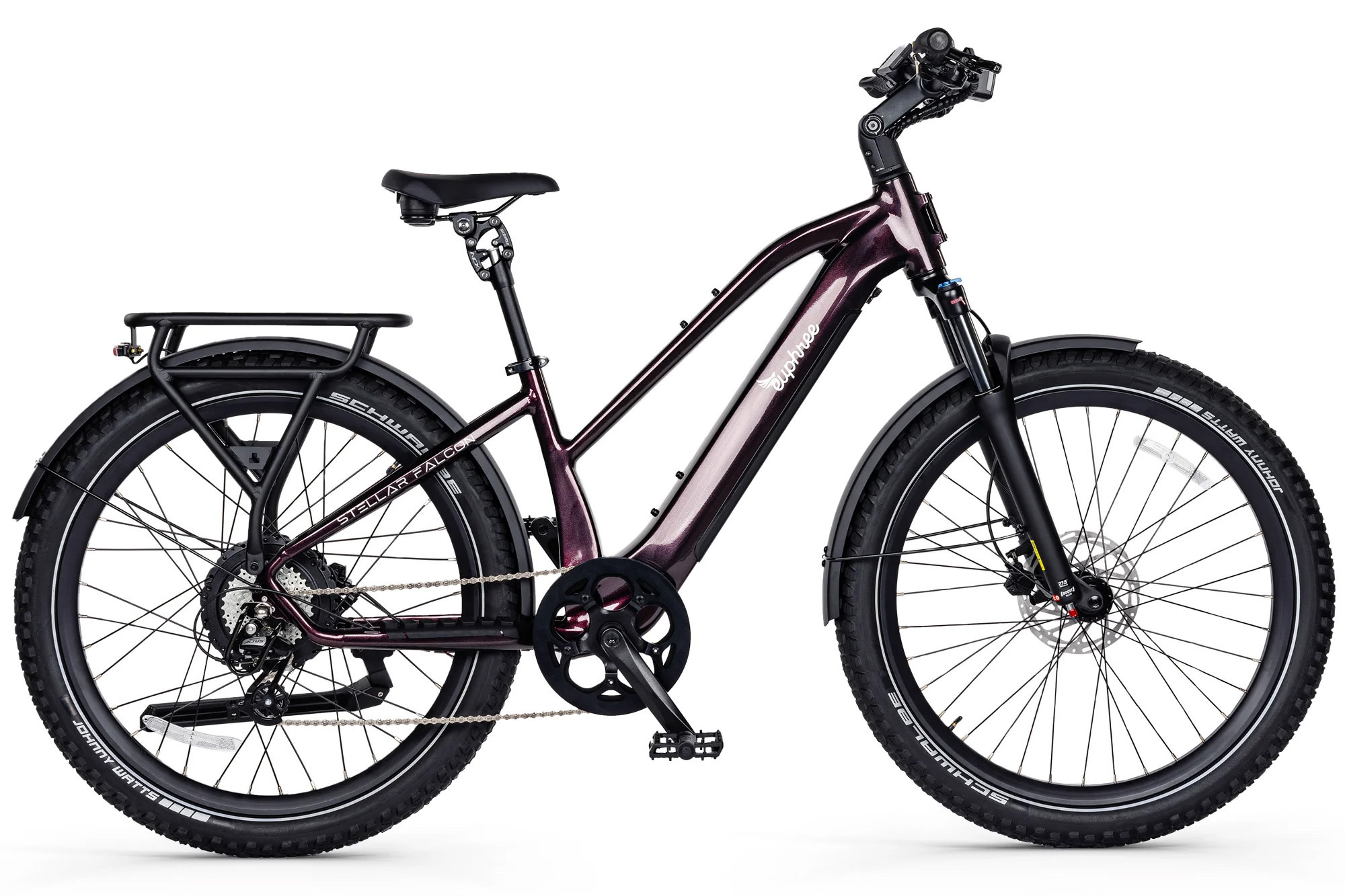

Conquer Every Terrain with the Stellar Falcon Mid-Step.
Powerful, versatile, and built to handle whatever comes your way, the Stellar Falcon Mid-Step is the ultimate SUV of ebikes. Take on city streets, light trails, and steep climbs with confidence.
| Rider Height | 5’4 - 6’2” |
|---|---|
| Seat Tube Length | 17 inches |
| Total Length | 73 inches |
| Wheelbase | 47 inches |
| Standover Height | 19 inches |
| Reach | 18 inches |
| Saddle Height | 34 - 42 inches |
| Handlebar Height | 44 - 48 inches |
General Information
- Model: Stellar Falcon
- Range: Up to 70 miles
- Speed: 28 mph max
- Weight: 74 lbs
- Total Weight Capacity: 350 lbs
- Sensor System: Torque / Cadence
- Safety Certifications: SGS Certified, UL 2849
Frame
- Frame Material: Aluminum 6061 Alloy
- Frame Style: Mid Step
- Rear Rack: Bolt on frame
Drivetrain
- Brakes: Tektro E350 Hydraulic Brakes
- Brake Lever: Adjustable with motor cut-off
- Brake Rotor: 180 mm front & rear
- Derailleur: Shimano Altus, 8-Speed
- Freewheel: 8-speed, 11 x 34T gearing
- Chain: KMC Z7 Stainless Steel
- Crank Set: Aluminum Alloy, 170 mm
- Chainring: 50T, Double sided
- Pedals: Polypropylene
Suspension & Wheelset
- Front Fork: SR Suntour XCM 32 Boost, 110 mm travel, Air Suspension
- Tires: Schwalbe Johnny Watts 27.5 x 2.8”
- Rim: Double Walled Aluminum
- Spokes: 13G Front, 12G Rear
- Front Hub: Thru Axle
Electronic
- Motor: 750W Bafang Geared Hub Motor
- Battery: 48V, 15Ah, 720Wh
- Controller: Euphree Custom 48V, 25 Amp in-frame
- Display: Left Side Color LCD Display
- Headlight: 200 Lumens Dual Beam LED
- Rear Light: Brake Light Signal, 220° Visibility
- Charger: 48V, 3 Amp Fast Charge
- Throttle: Thumb Throttle, Left
- USB Port: Type C USB Charging
Cockpit
- Handlebar: Straight with slight rise, Aluminum Alloy, 730mm
- Grips: Rubber Ergonomic Locking Grips
- Stem: Adjustable Aluminum Alloy, 110 mm
- Phone Mount: SP Connect Integrated
- Saddle: Velo Wide Comfort
- Seatpost: SR Suntour NCX Suspension, 400mm
Accessories
- Fenders: Aluminum, Full Coverage
- Kickstand: Aluminum Alloy, Adjustable Foot
- Rear Rack: Welded In-frame
Weight & Load
- Bike Weight: 74 lbs
- Rider Max Capacity: 350 lbs
- Front Rack Capacity: 30 lbs
- Rear Rack Capacity: 100 lbs
Certifications
- Battery Certification: UL 2271
- Motor Certification: UL 2849
- Motor Certification: UL 2849
