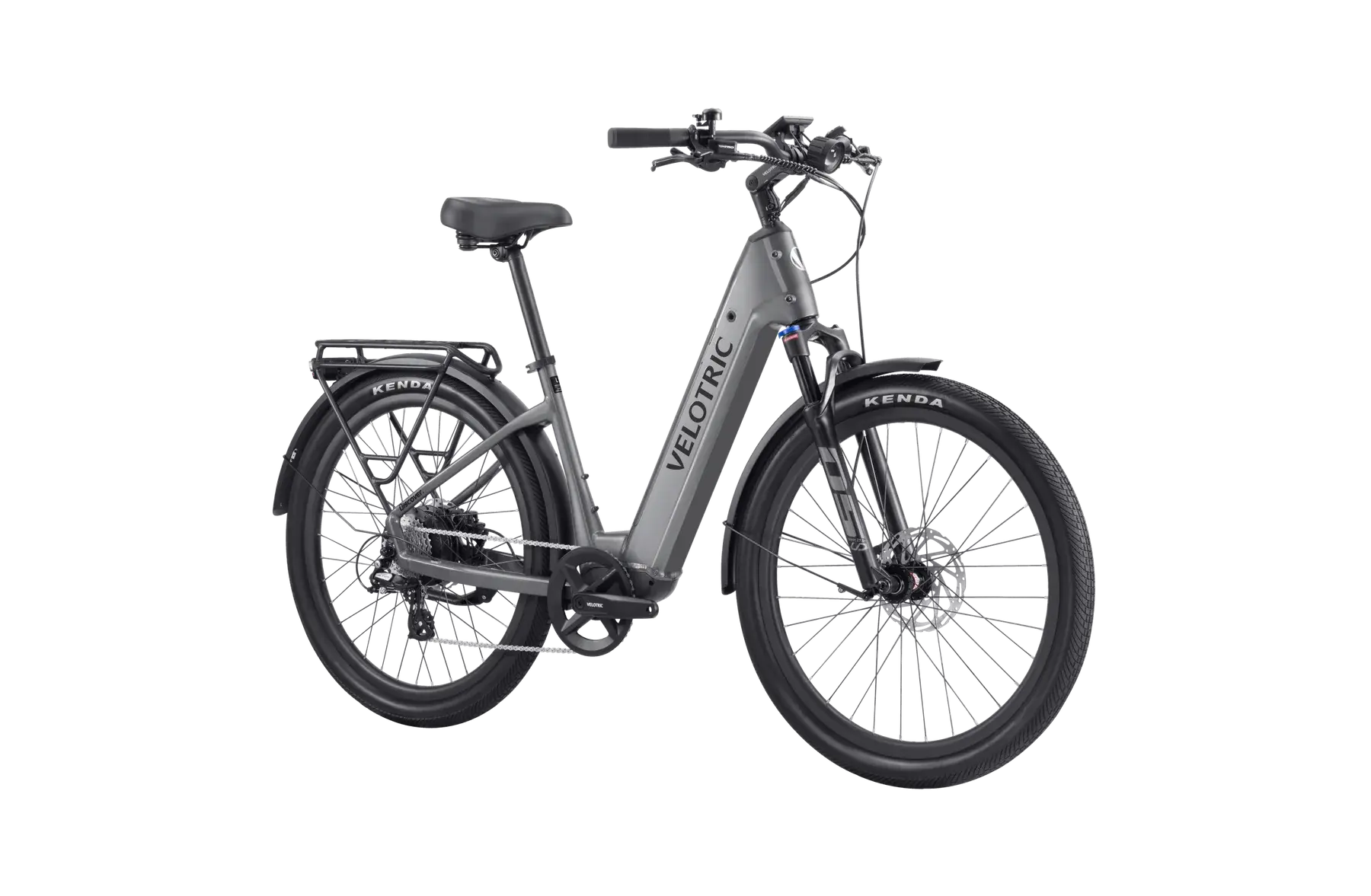

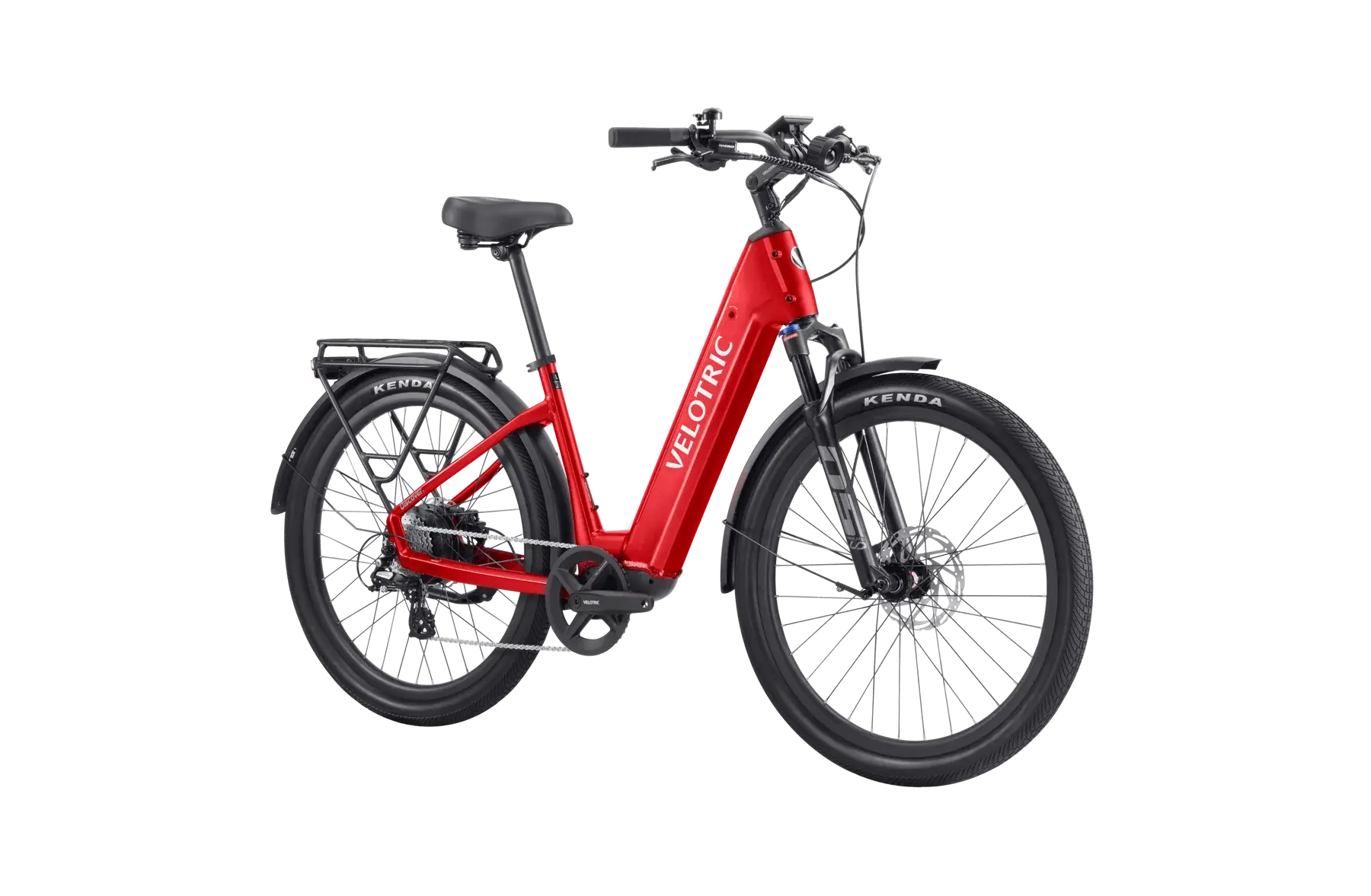

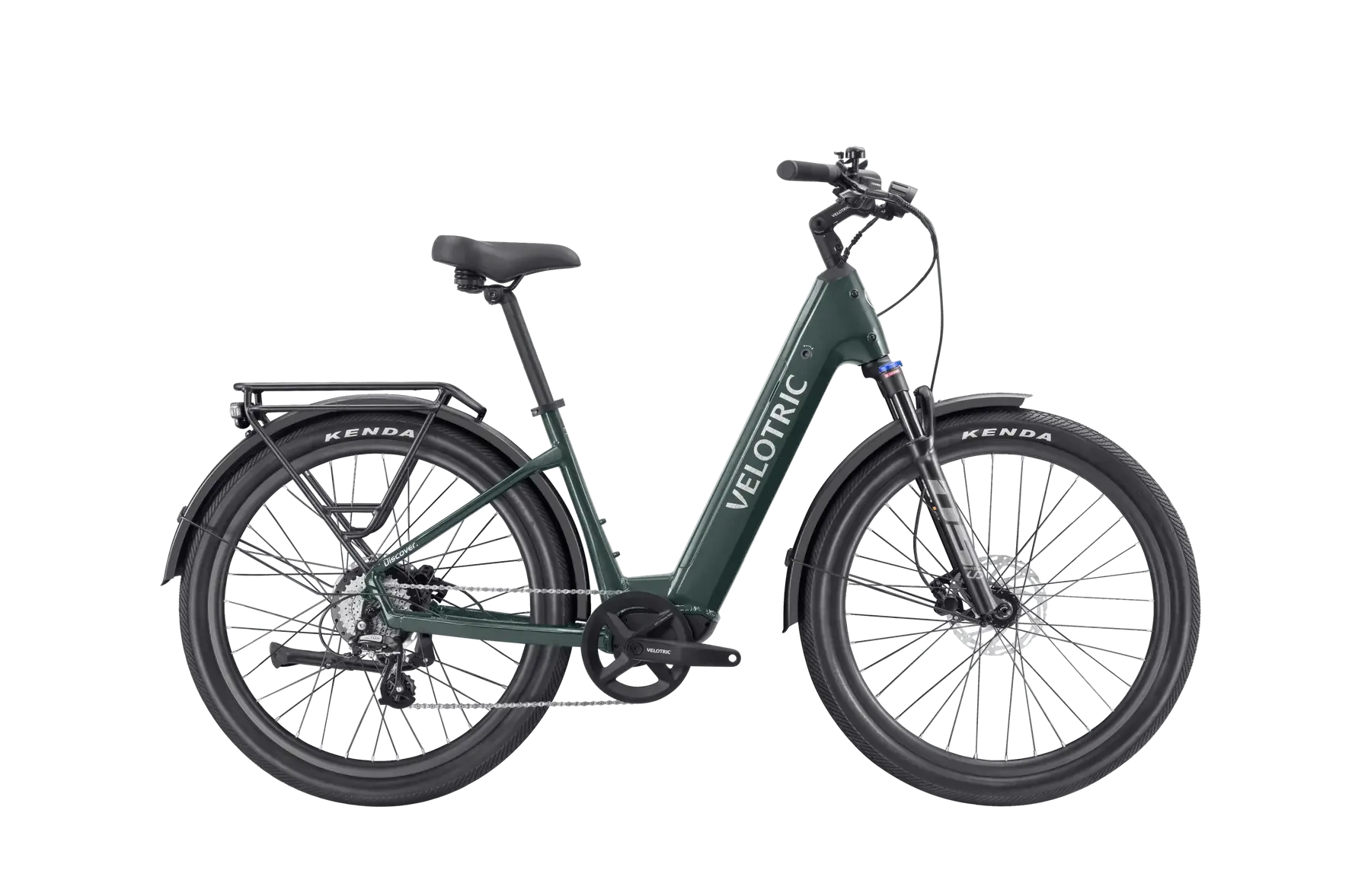

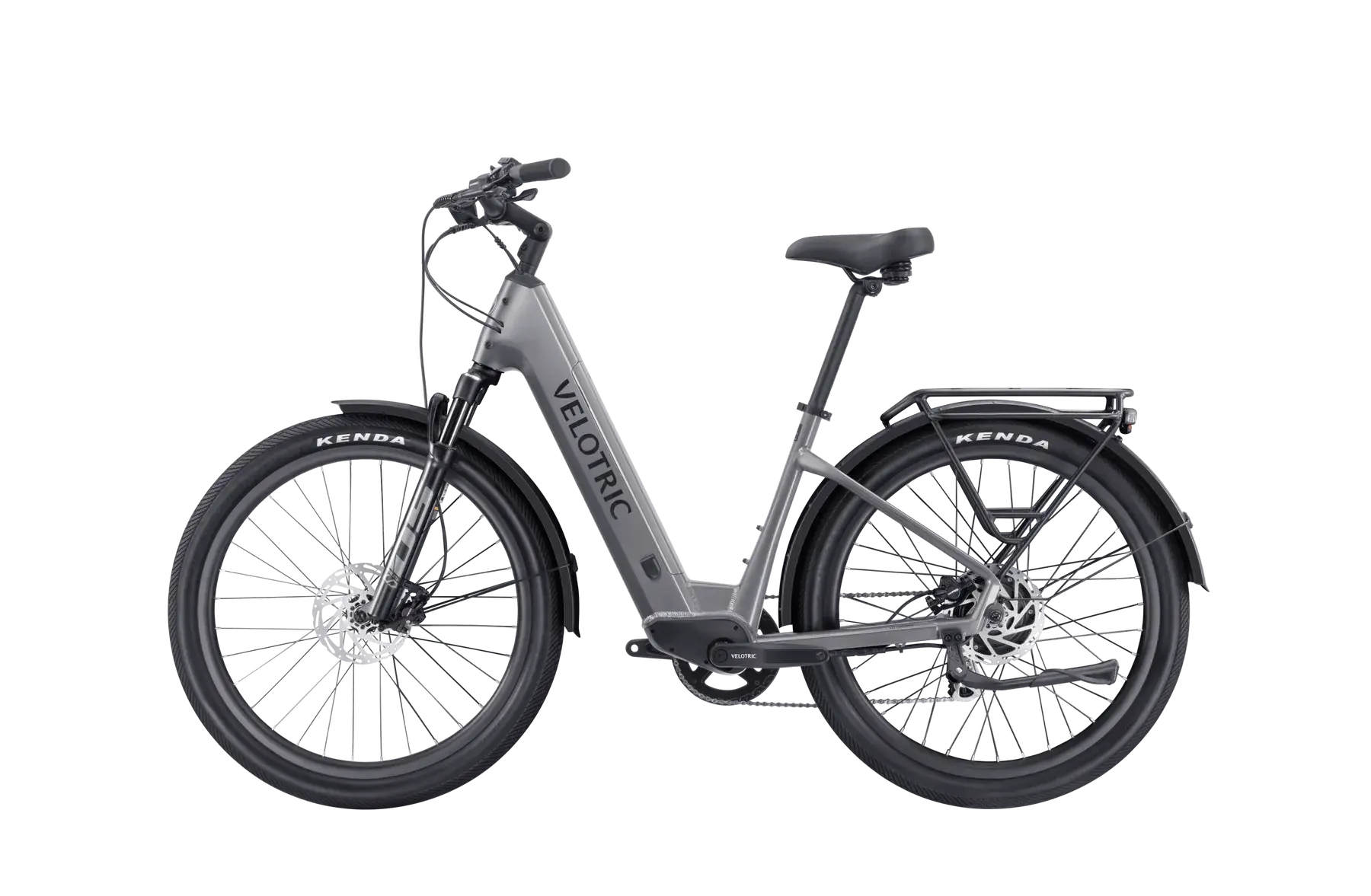

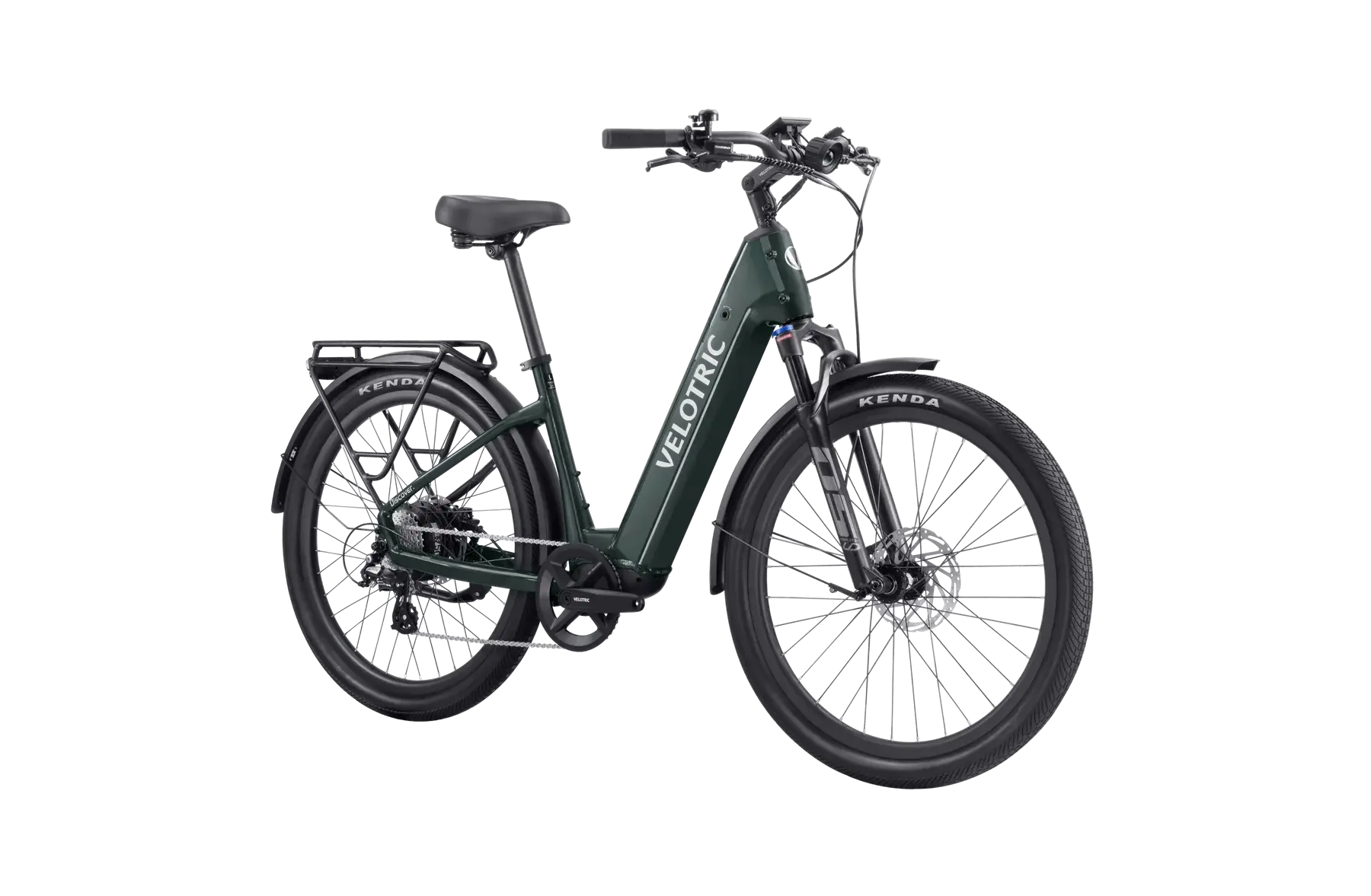

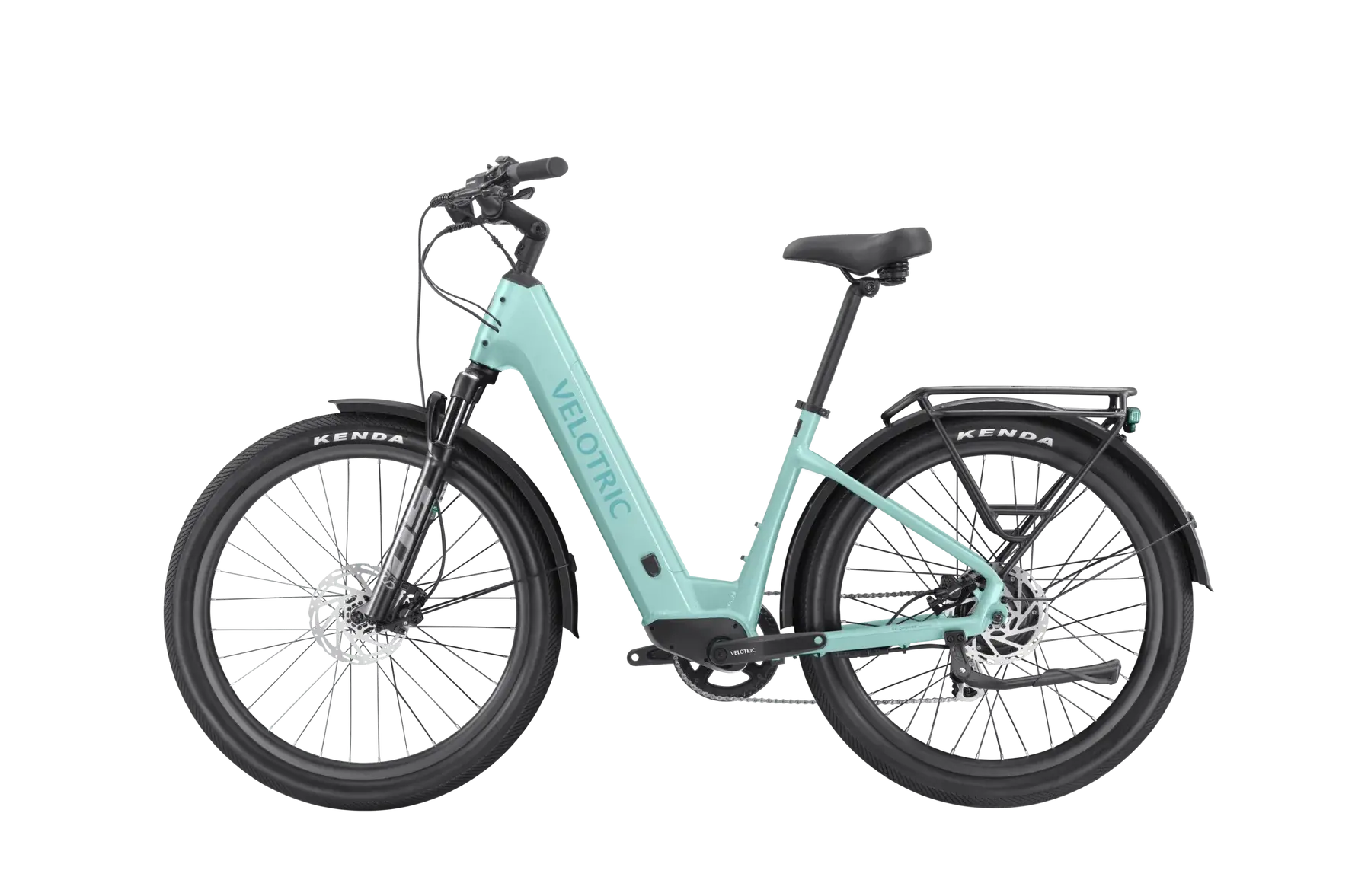

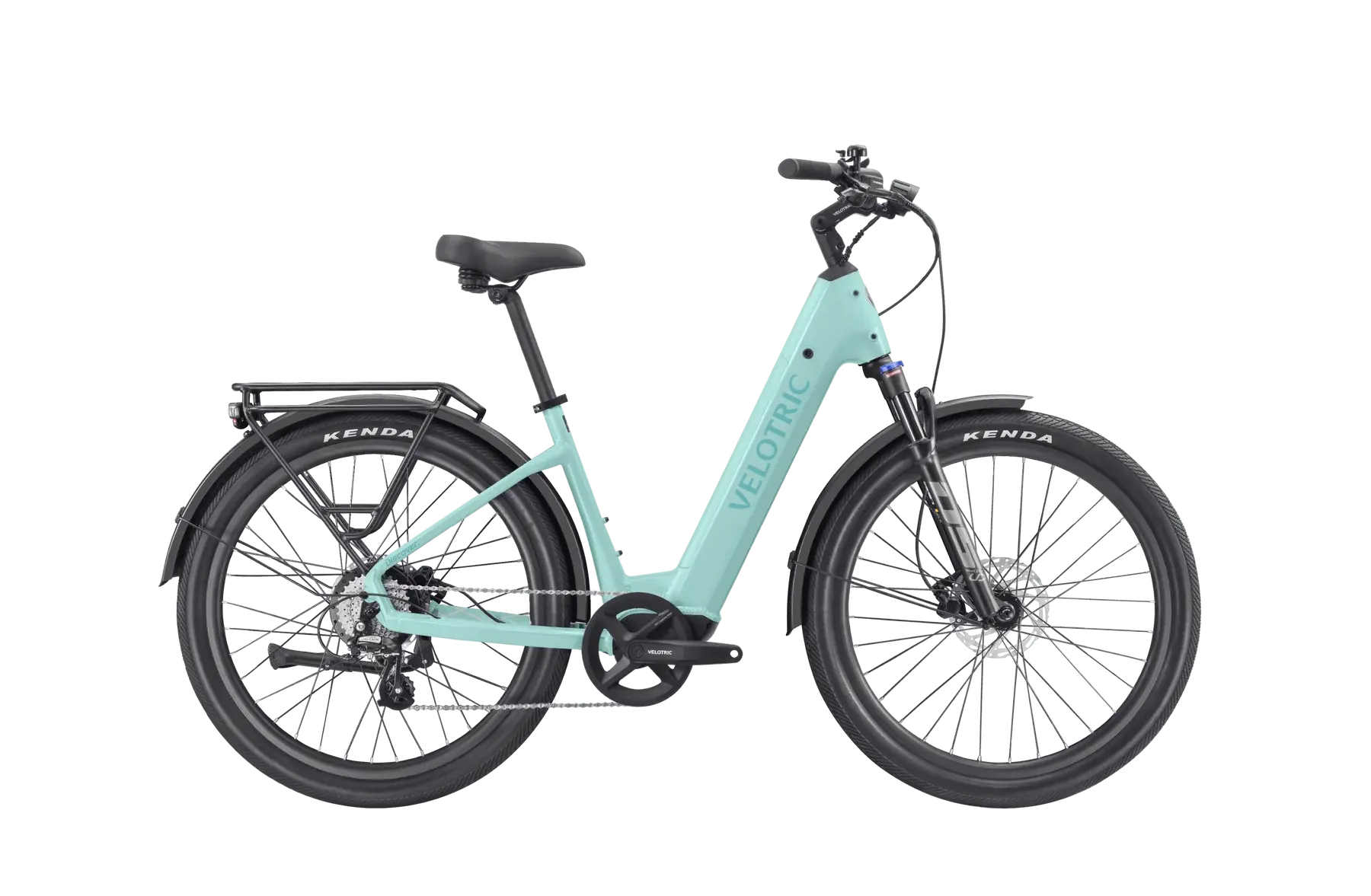

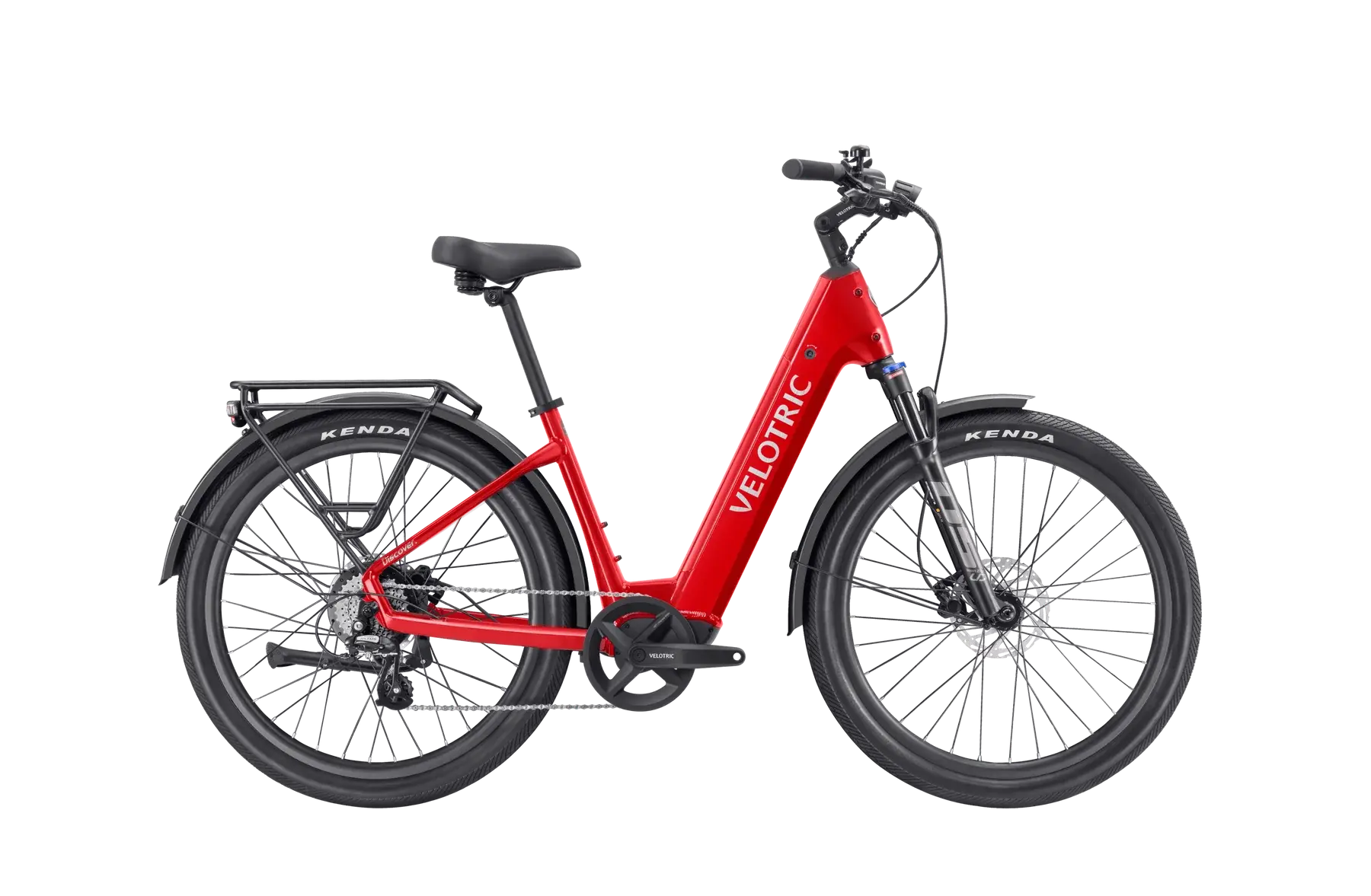

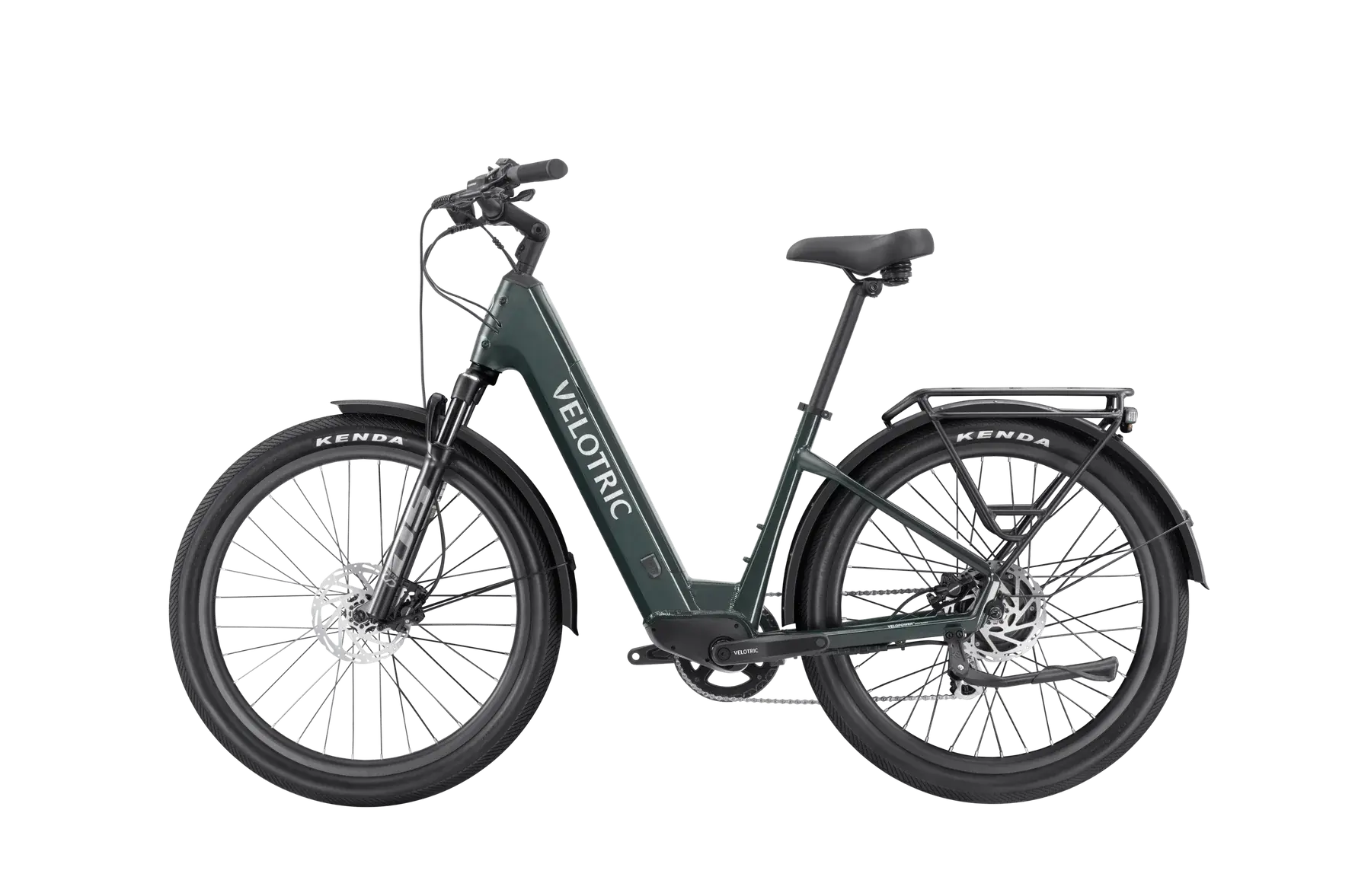

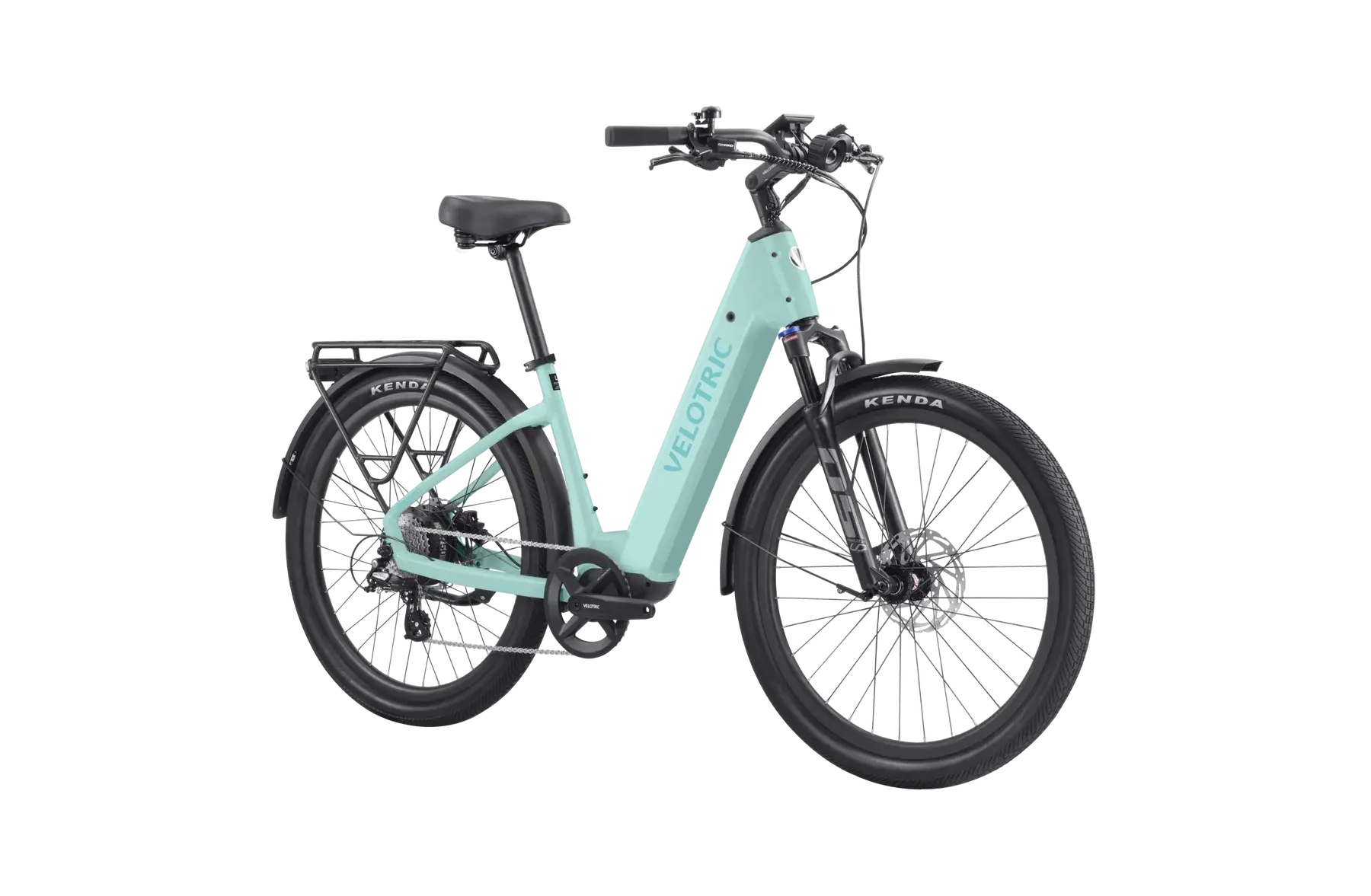

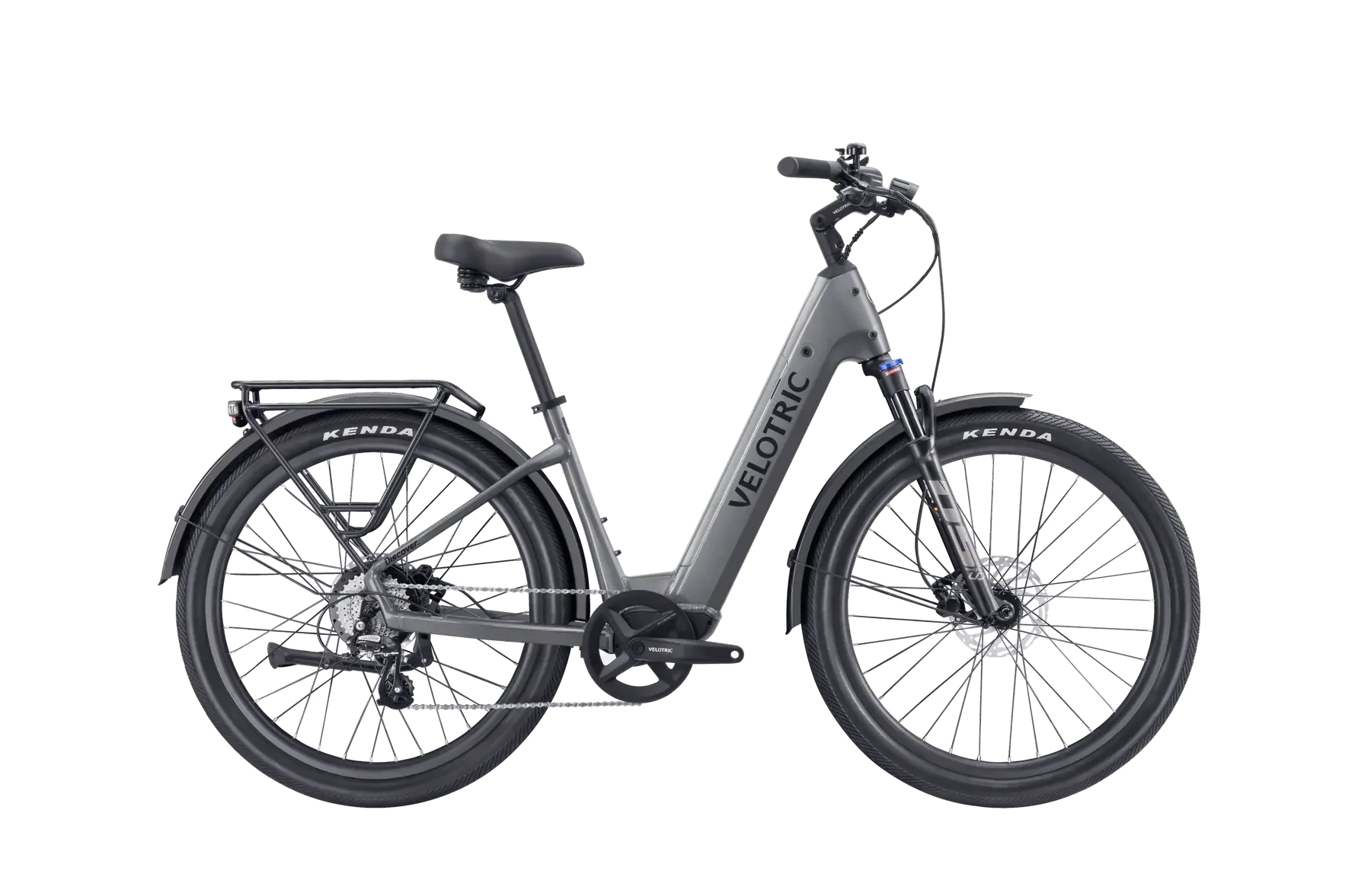

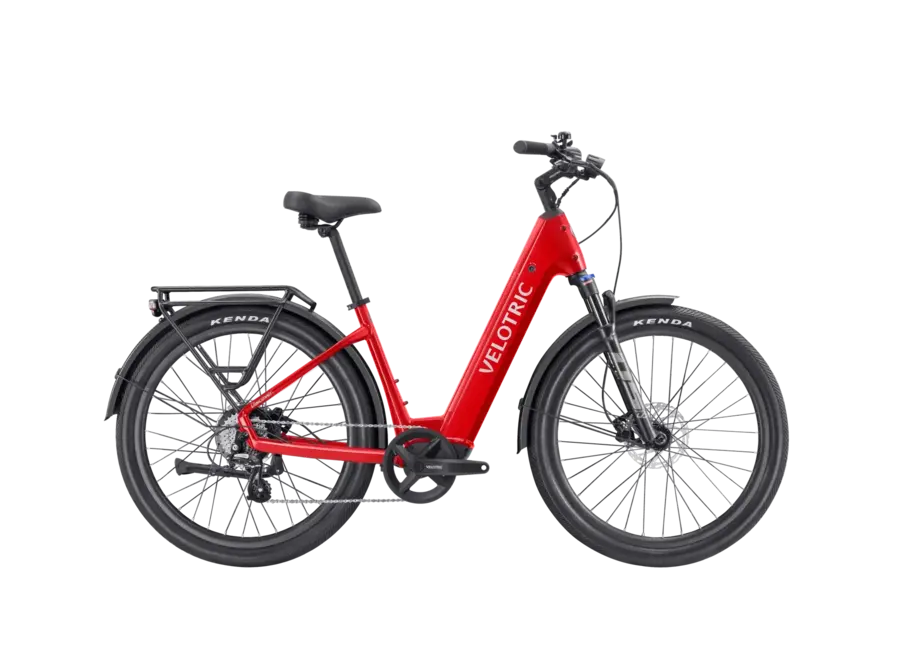

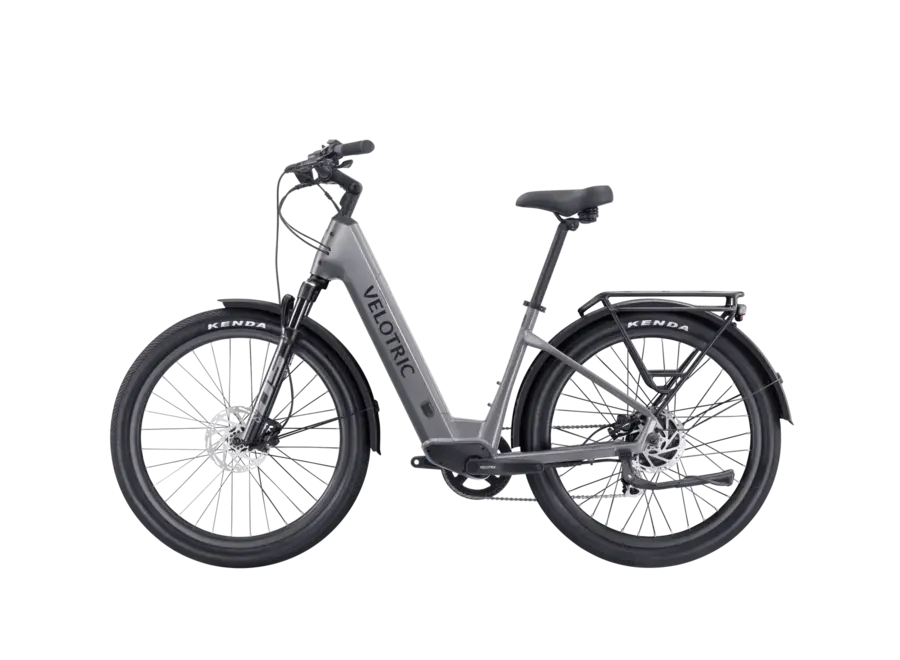

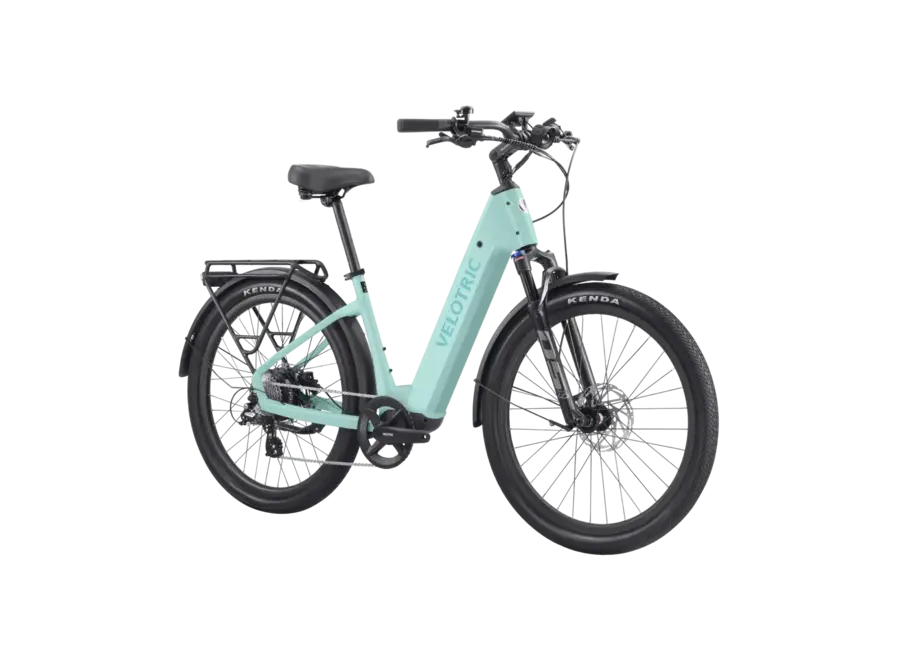

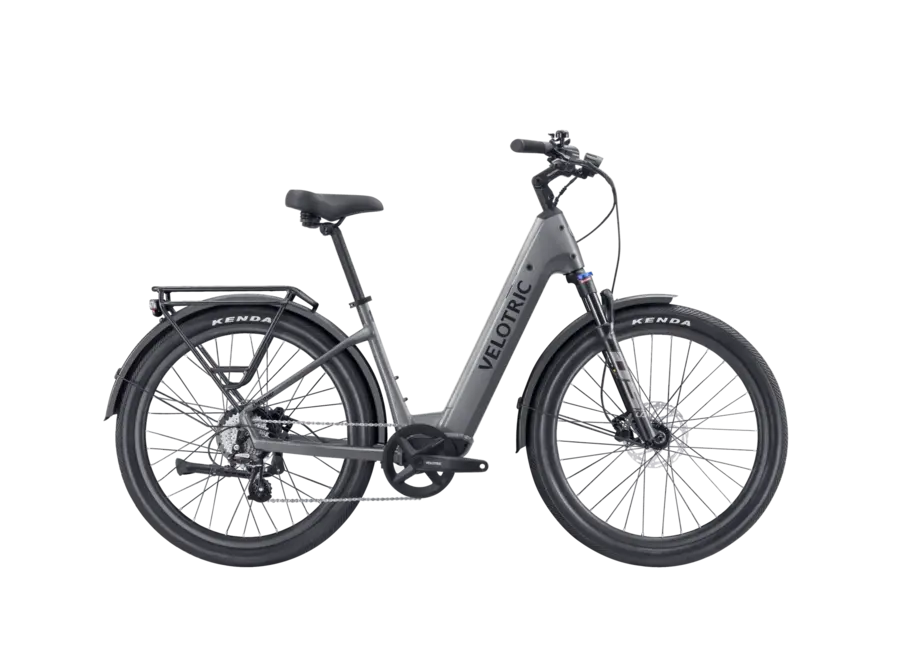

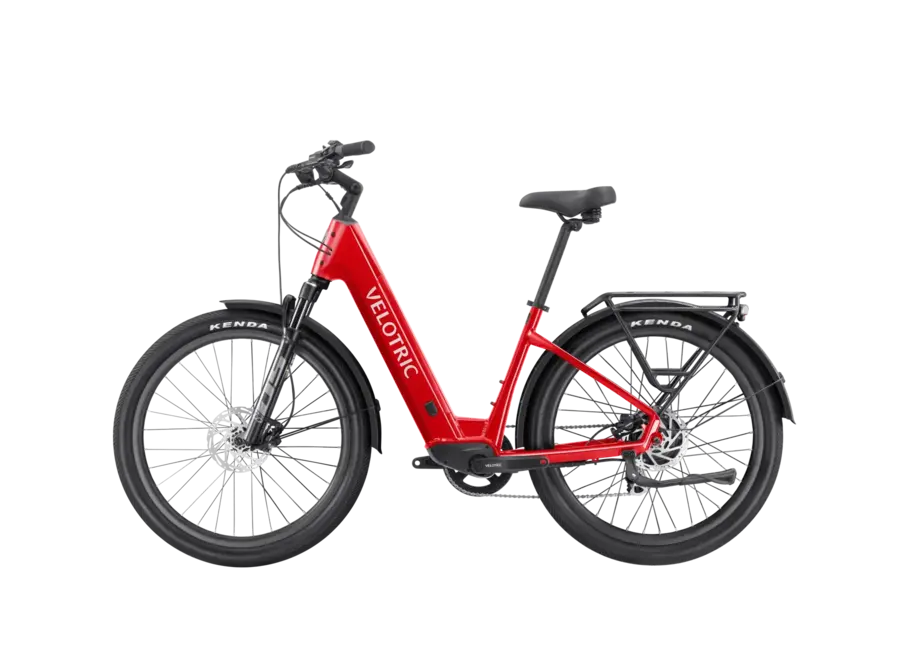

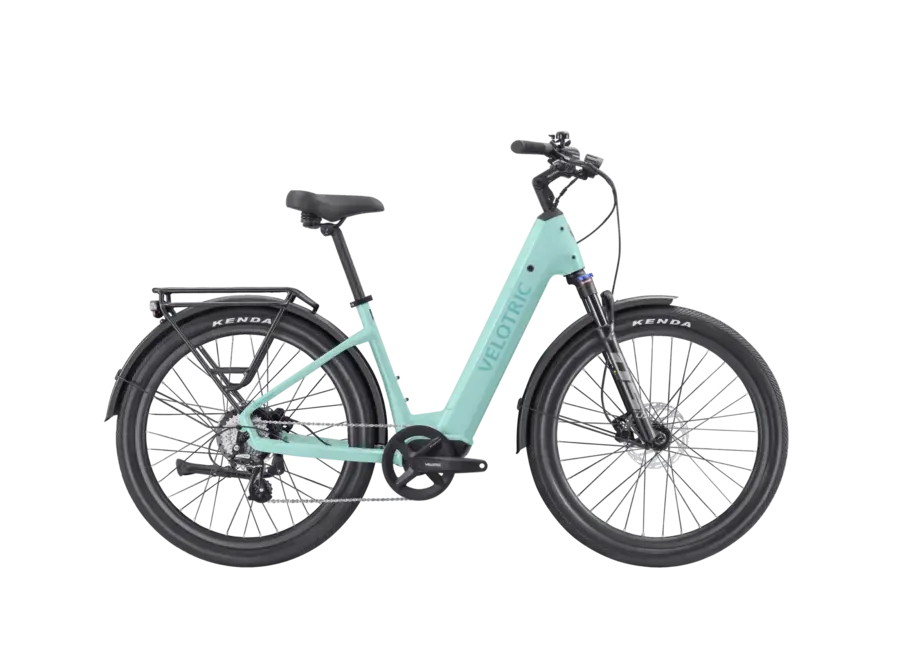

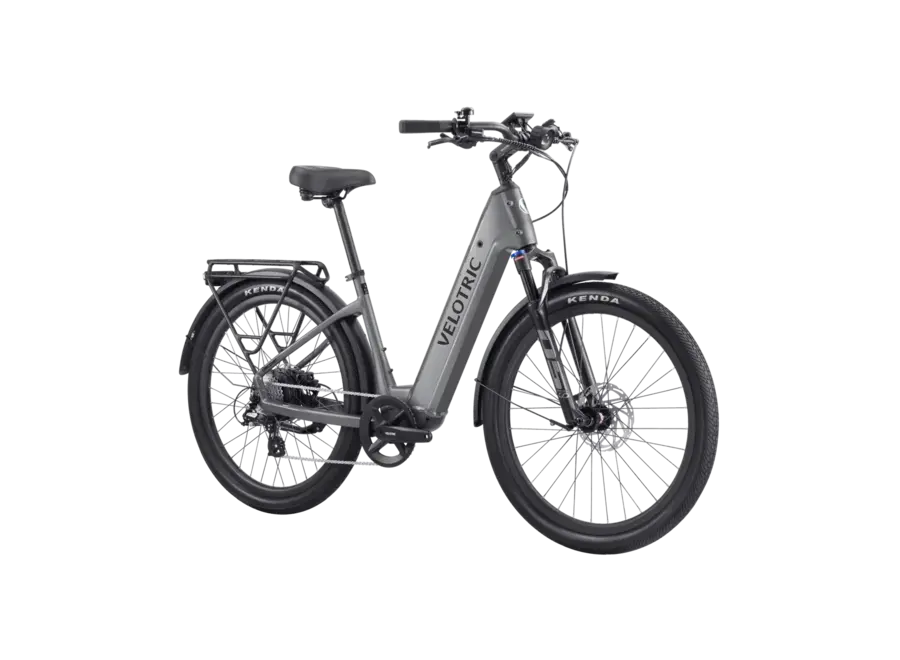

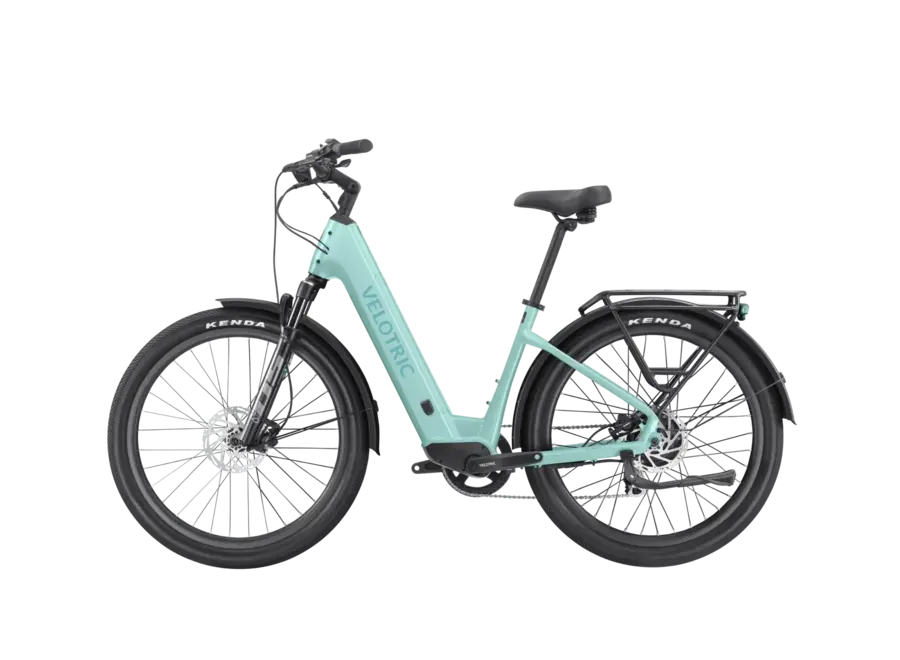

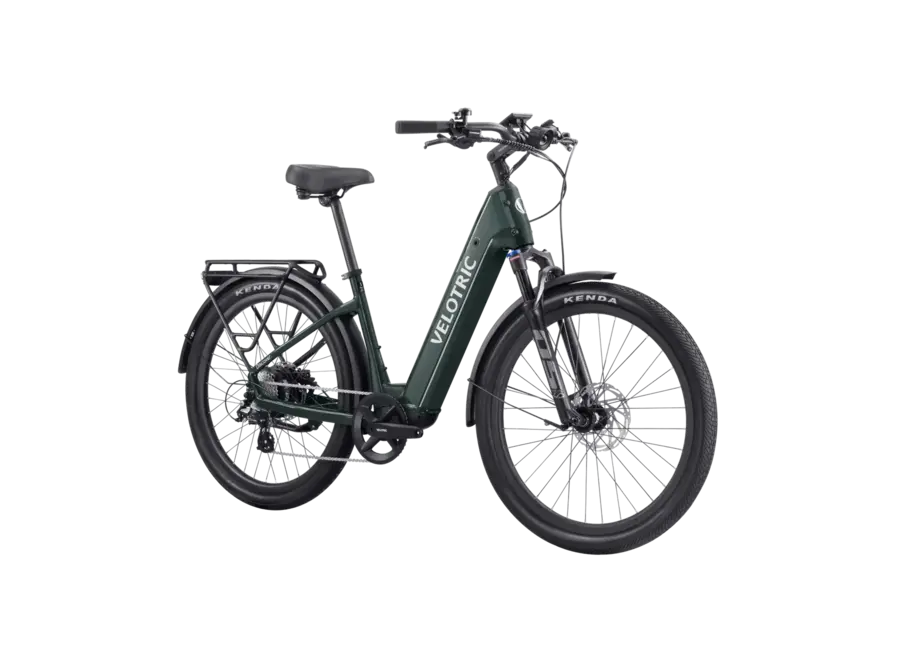

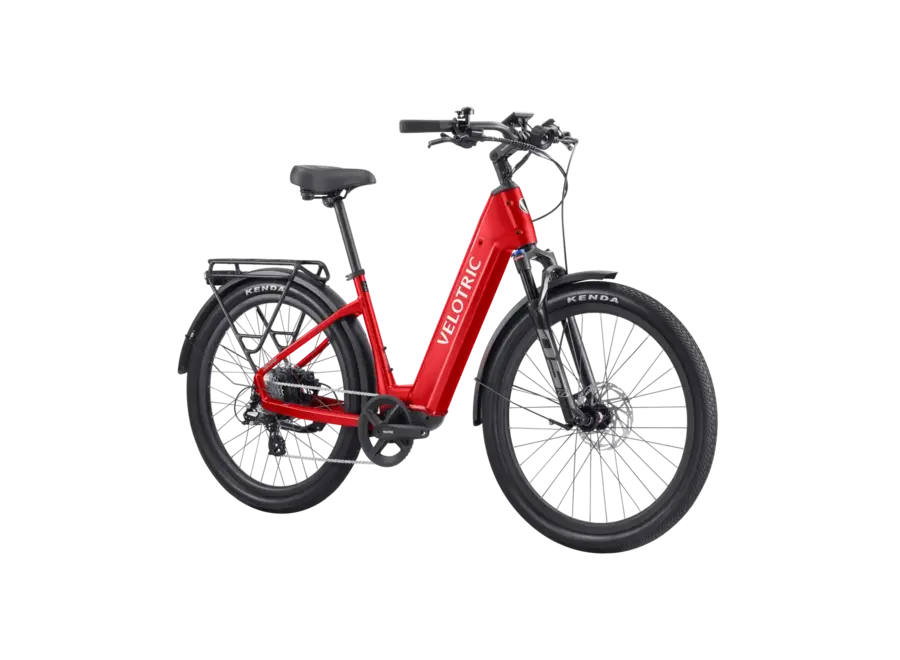

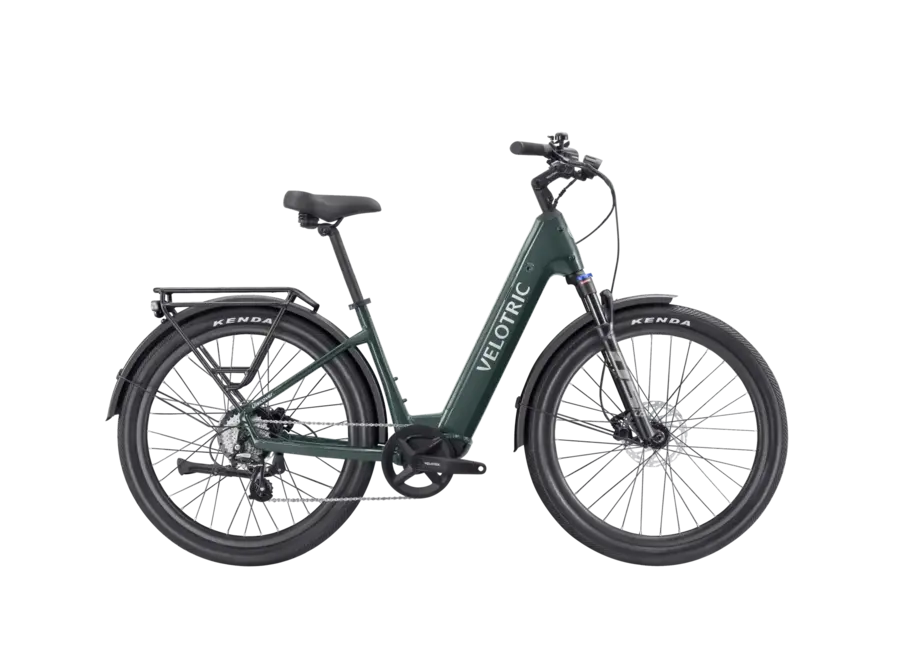

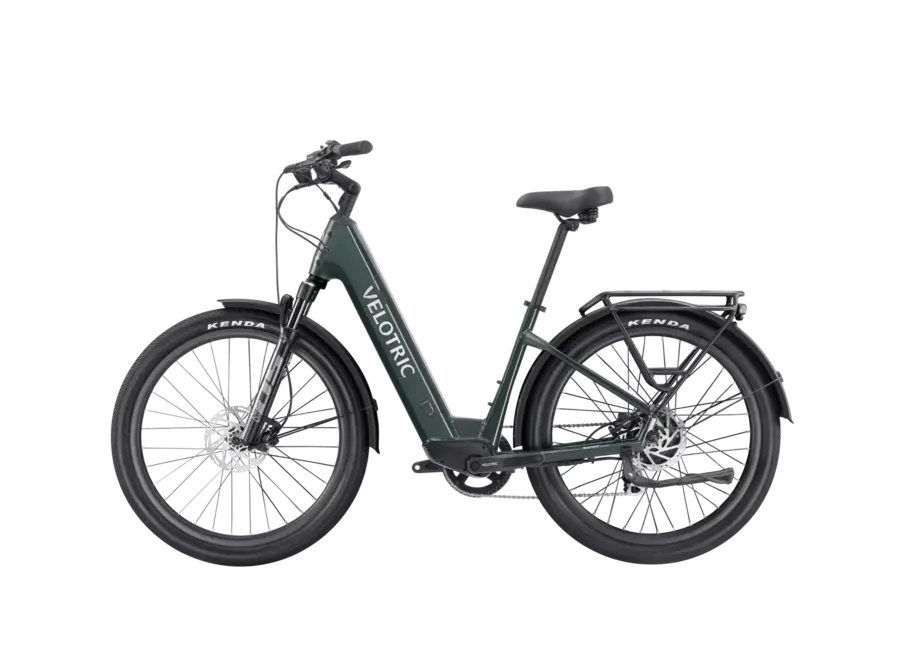

Velotric Discover 2 Step Thru Commuter Ebike

Product description

Effortless Power, Effortless Joy.

TECHNICAL SPECIFICATIONS

Size Guide

Bike Size : Regular/Large

User Height Range : Regular: 4'11" ~ 5'9"/Large: 5'6" ~ 6'4"

Frameset

Frame : Triple-Butted Aluminum Alloy

Fork : Hydraulic suspension 80mm travel with Lock-out, 15x110mm thru-axle

Electronics

Motor : 48V, 750W, 75Nm

Battery : 48V, 705.6Wh, IPX7, Certificated by UL 2271

Cell : Samsung/LG 21700 cell, Certificated by UL 2580

Charger : 48V, 3A Fast Charger

Sensor : Torque sensor

Display : 3.5" Full color, high brightness, Bluetooth, adjustable angle

USB Port : USB Type-C phone charge

Security : Apple Find My™

Throttle : Trigger-control, removable

Pedal Assist : 3 Modes × 5 Levels

Walk Mode : 2.9 MPH

Front Light : Light sensing 130Lux high-output integrated LED, adjustable angle

Rear Light : Brake highlight, turn signal, rear light steady/flash, integrated with rear rack

Water Resistant : IPX6

Speed & Range

Max Speed (Default） : 20 MPH

Max Speed Adjustable Range : 12~28 MPH

Class : 1,2,3

Throttle Range : 60 Miles

Pedal Assist Range : 75 Miles

Drivetrain

Chainrings : 46T, narrow wide chainring

Crankset : Aluminum Alloy, 170mm

Cassette : 8-speed

Rear Derailleur : SHIMANO 8-speed

Shift Lever : SHIMANO 8-speed

Chain : KMC 8-speed

Brake

Brake : Tektro Hydraulic Disc Brake

Rotors : 180mm front and rear

Brake Levers : Aluminum Alloy, with power cutoff

Wheel

Rims : Double-wall Aluminum Alloy

Front Hub : NOVATEC Aluminum Alloy, 15x110mm thru-axle

Tire : Kenda 27.5x2.4" eBike puncture resistant tires

Cockpit

Handlebar : Aluminum Alloy, Φ31.8mm, 680mm (R)/700mm (L)

Grips : Durable ergonomic grips, lockable

Stem : Adjustable, Aluminum Alloy, φ31.8mm, 90mm

Saddle : VELOTRIC urban comfort ergonomic seat

Seatpost : Aluminum Alloy, φ30.9mm, 350mm

Clamp : Aluminum Alloy, quick release

Supports

Fenders : Aluminum Alloy, front and rear full coverage

Rear Rack : Aluminum Alloy, MIK HD system

Pedals : Plastic

Kickstand : Aluminum Alloy, included, rear mount

Weight & Load

Bike Weight : 63lbs

Rear Rack Load Capacity : 66lbs

Max Bike Load Capacity : 440lbs

Certification

UL Certification : UL 2849

ISO Standard : ISO 4210
