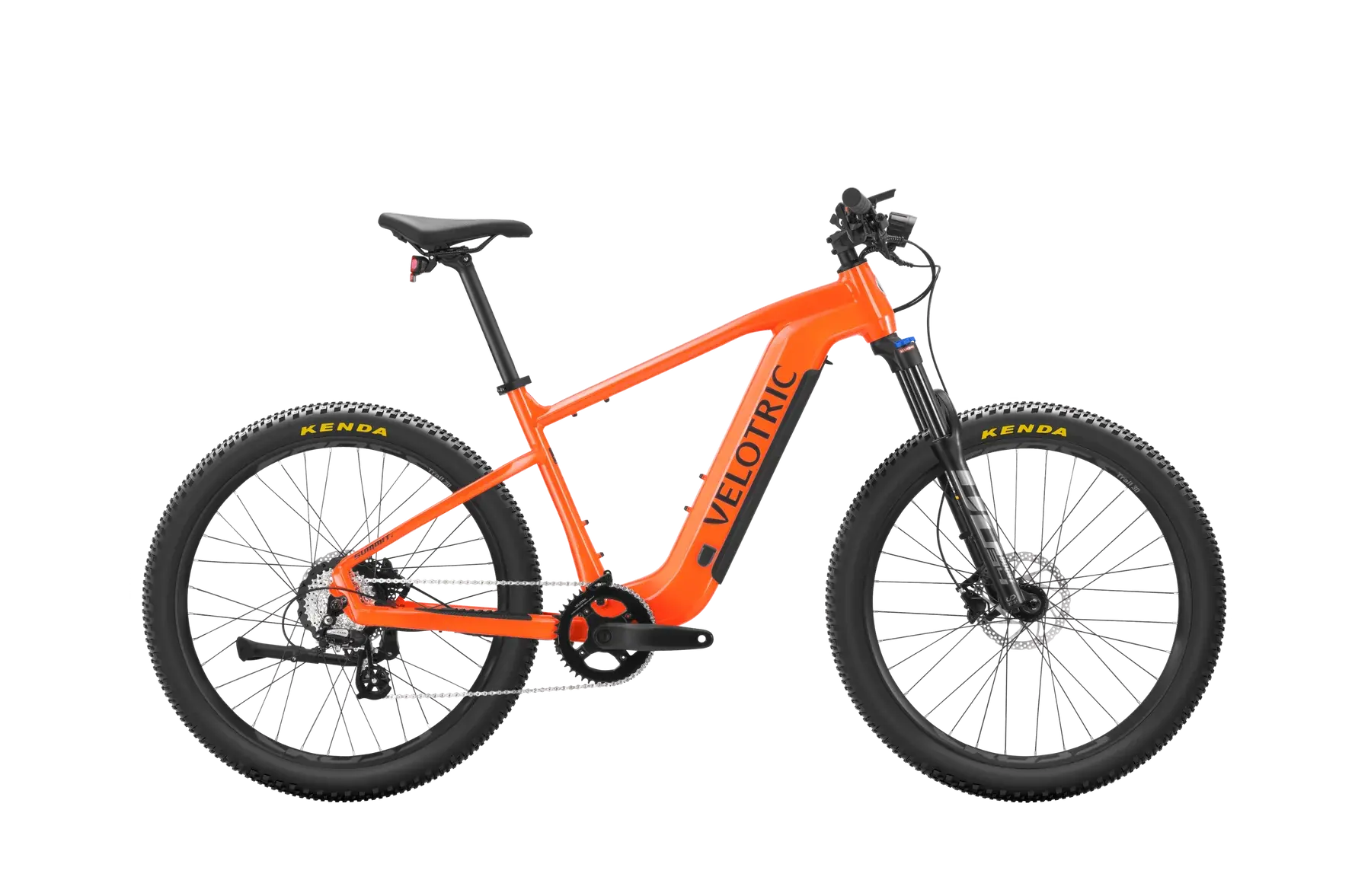

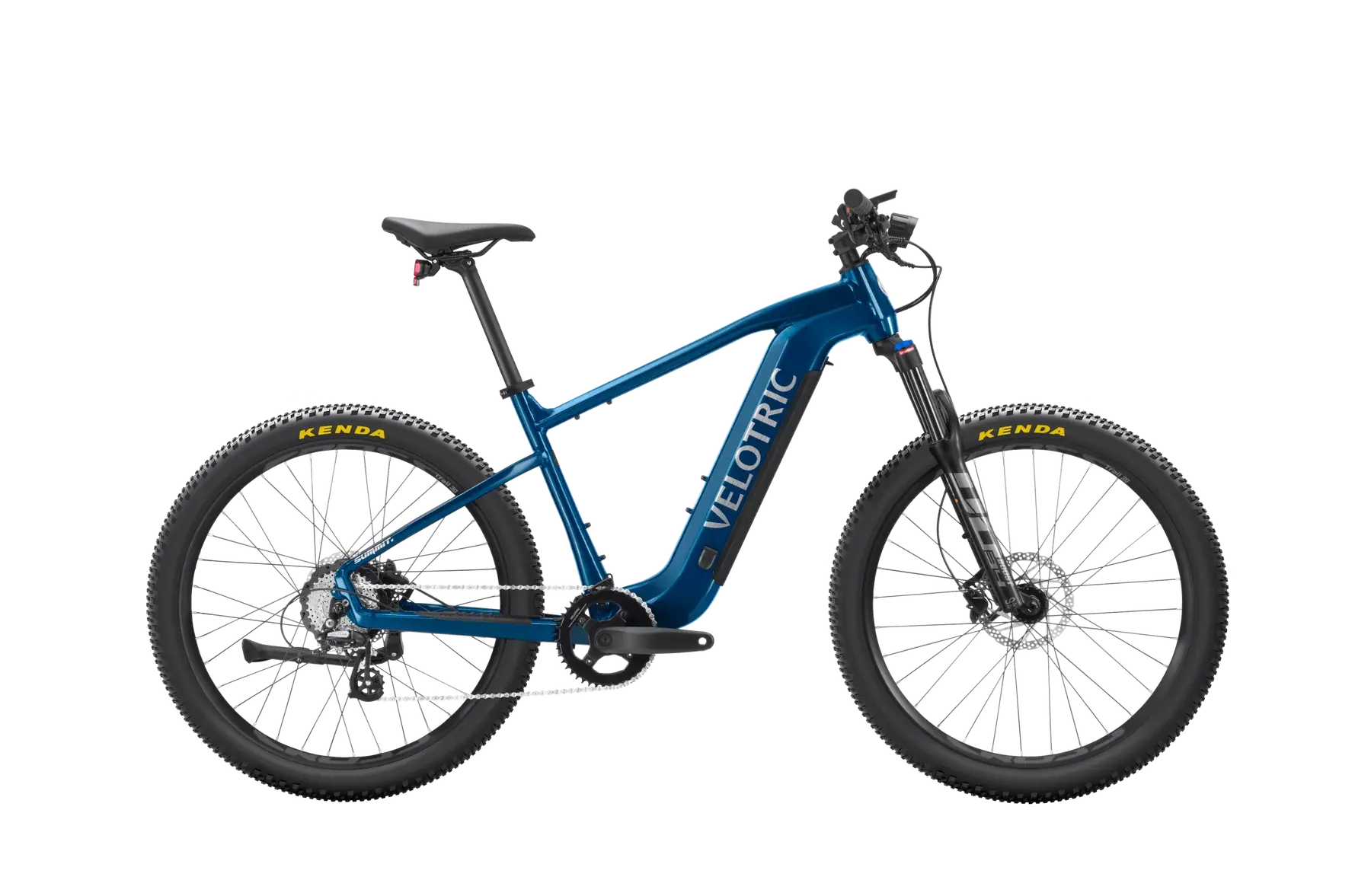

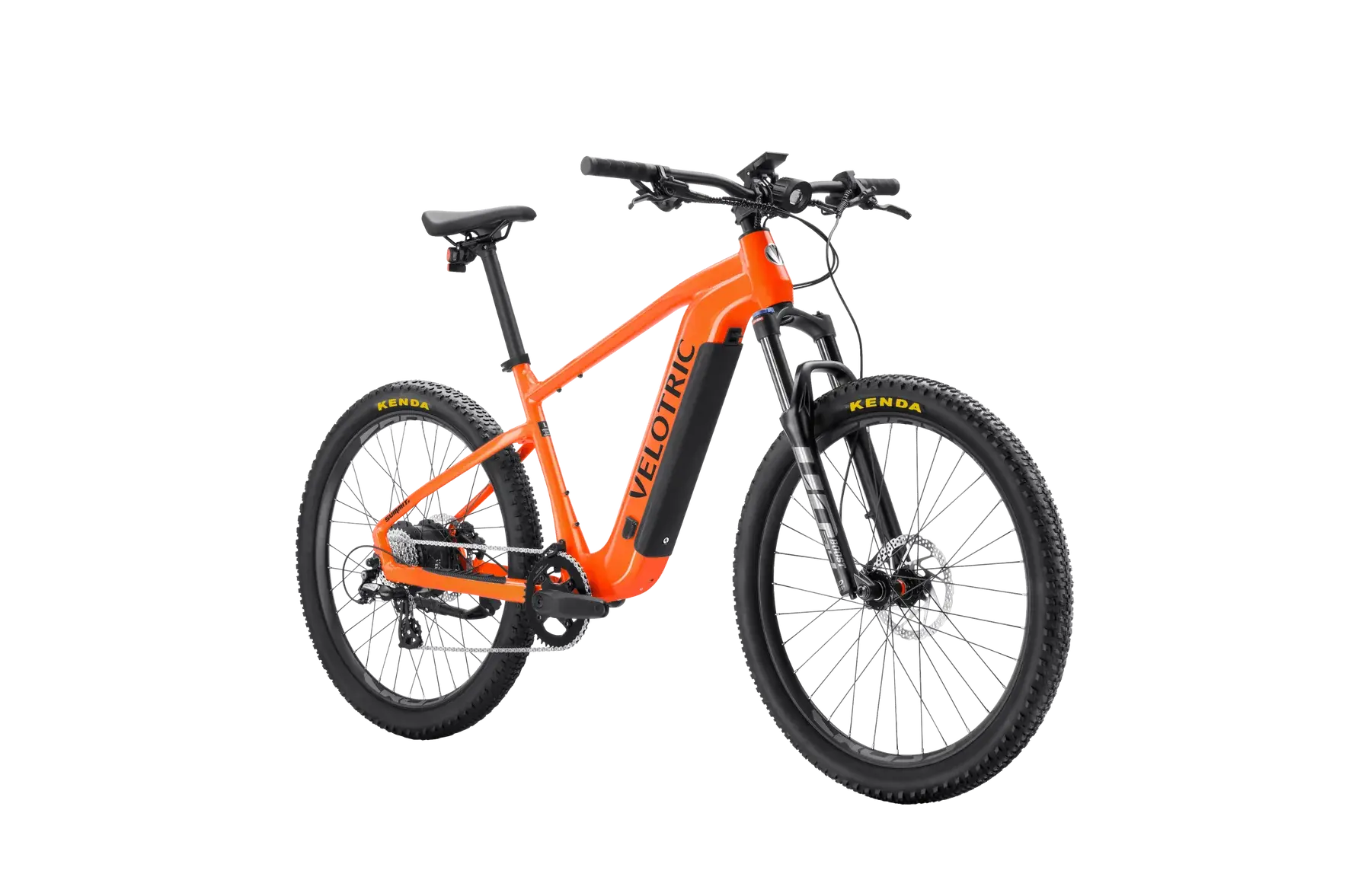

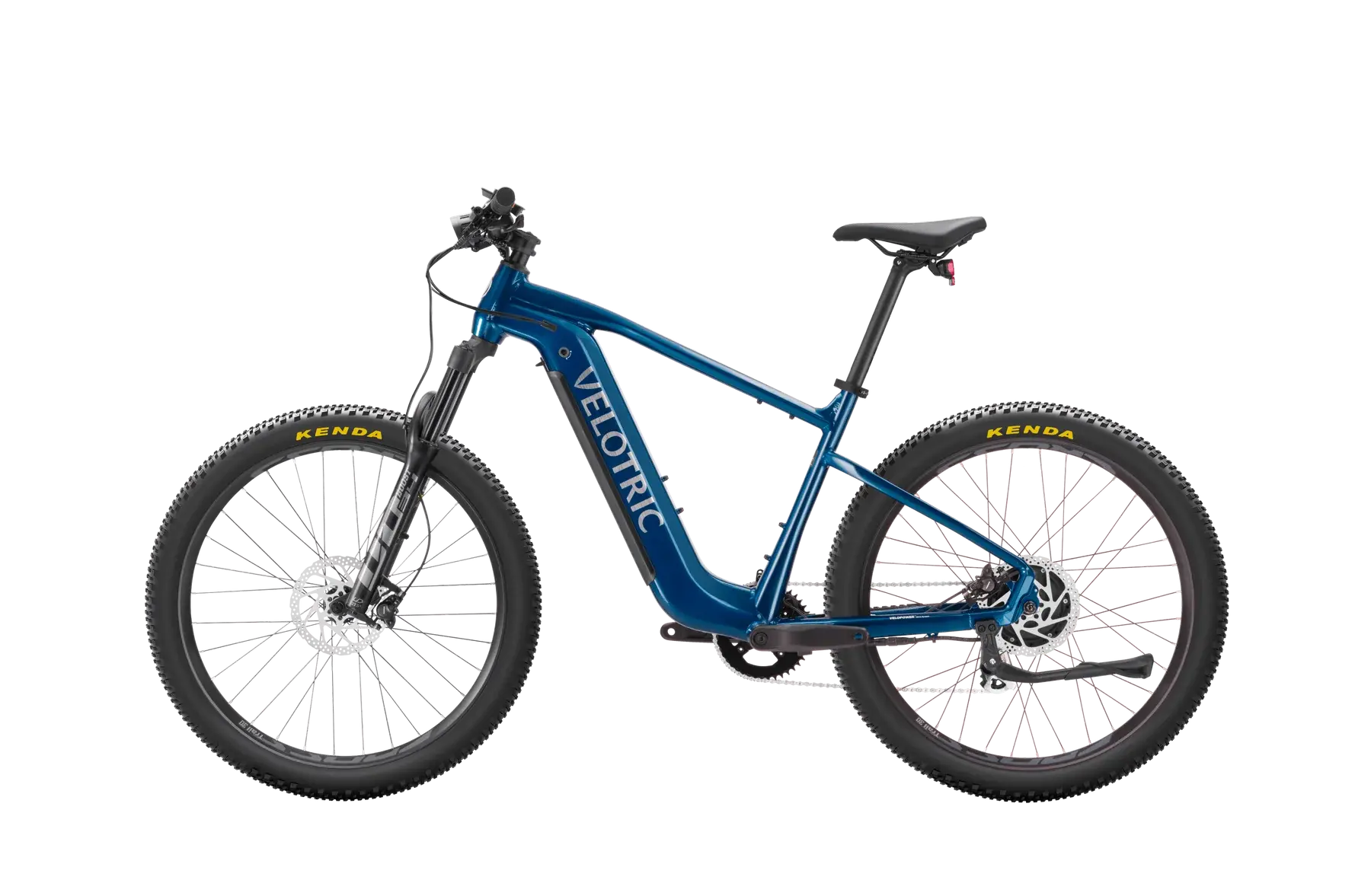

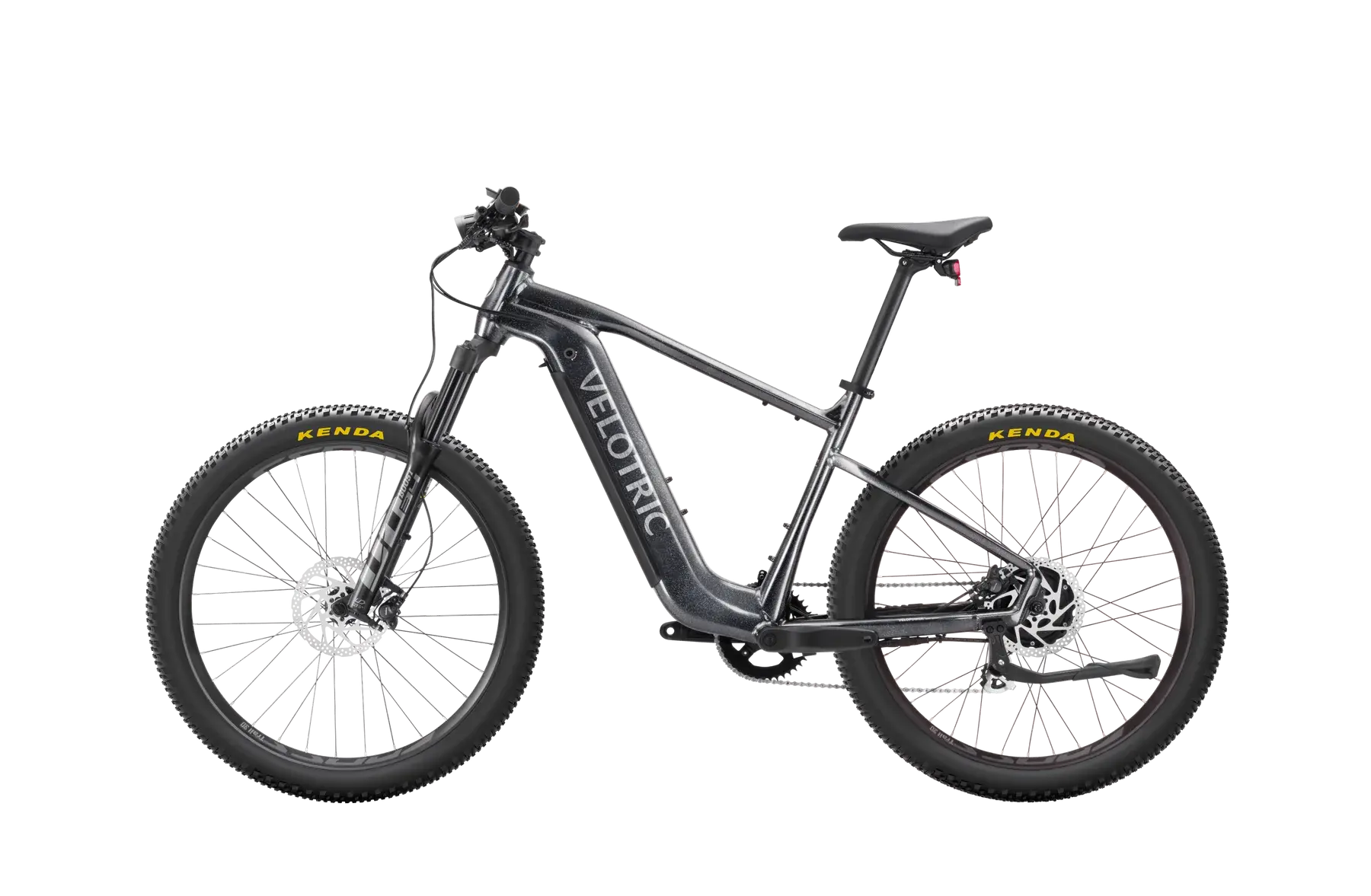

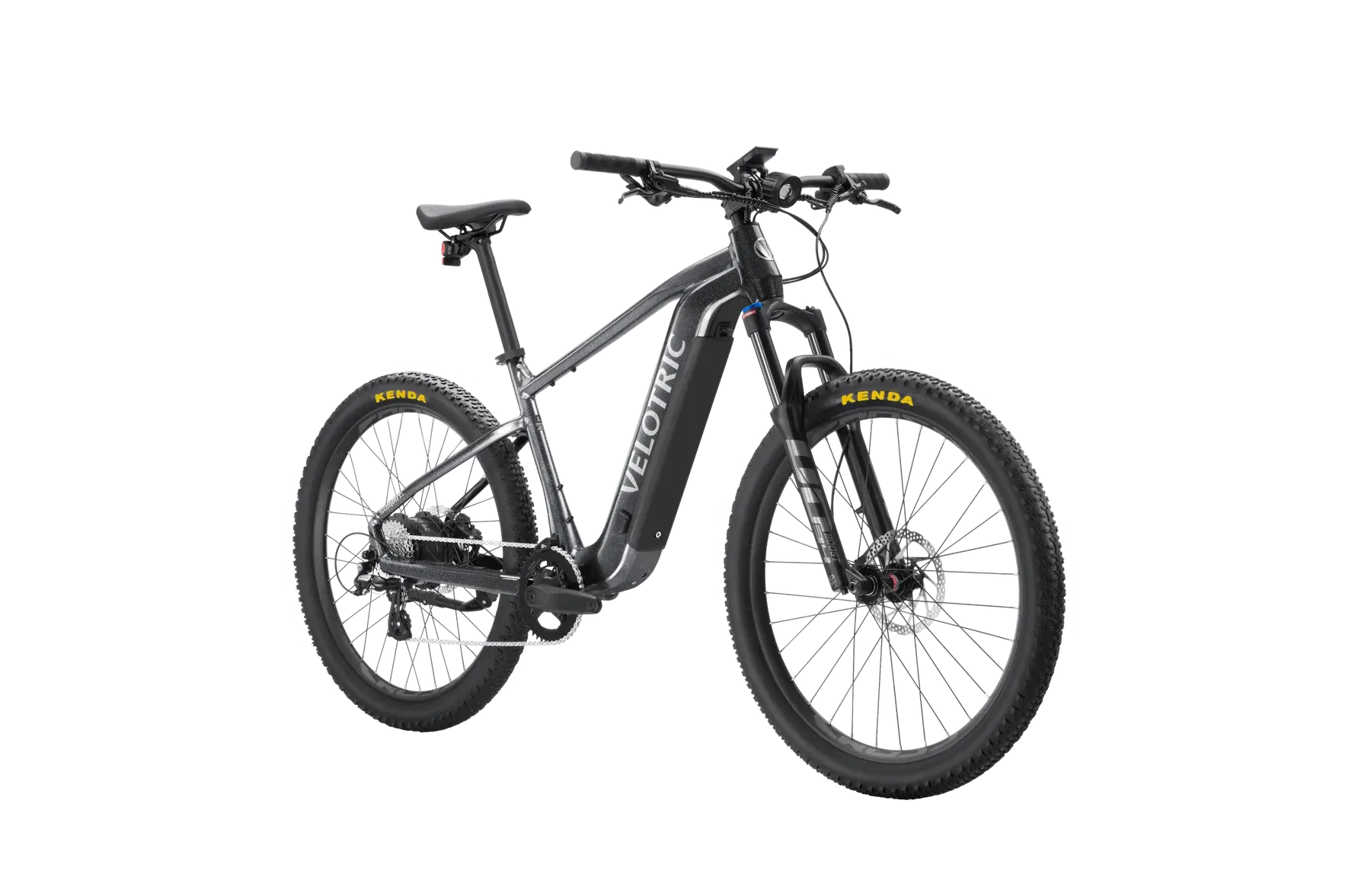

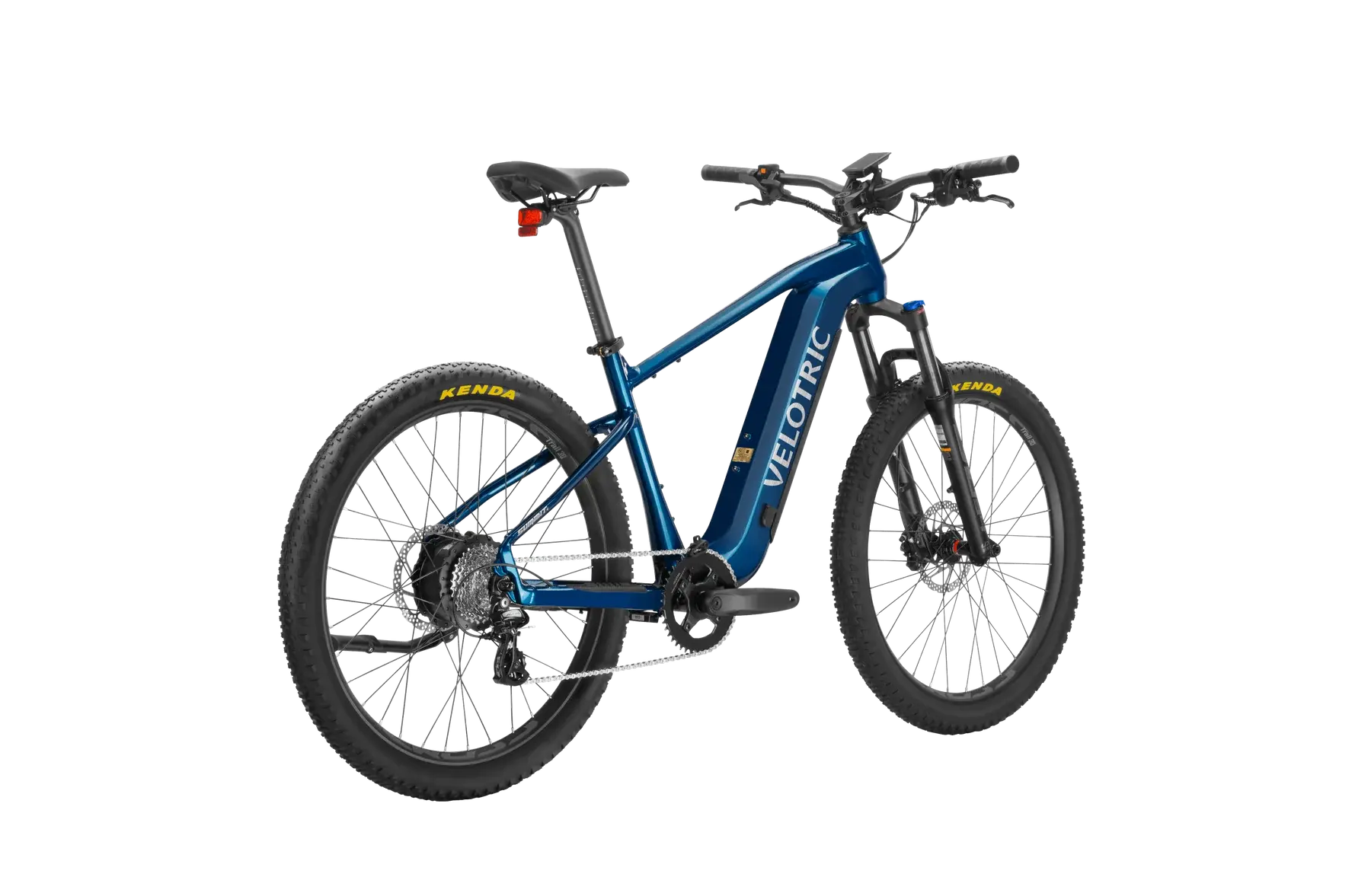

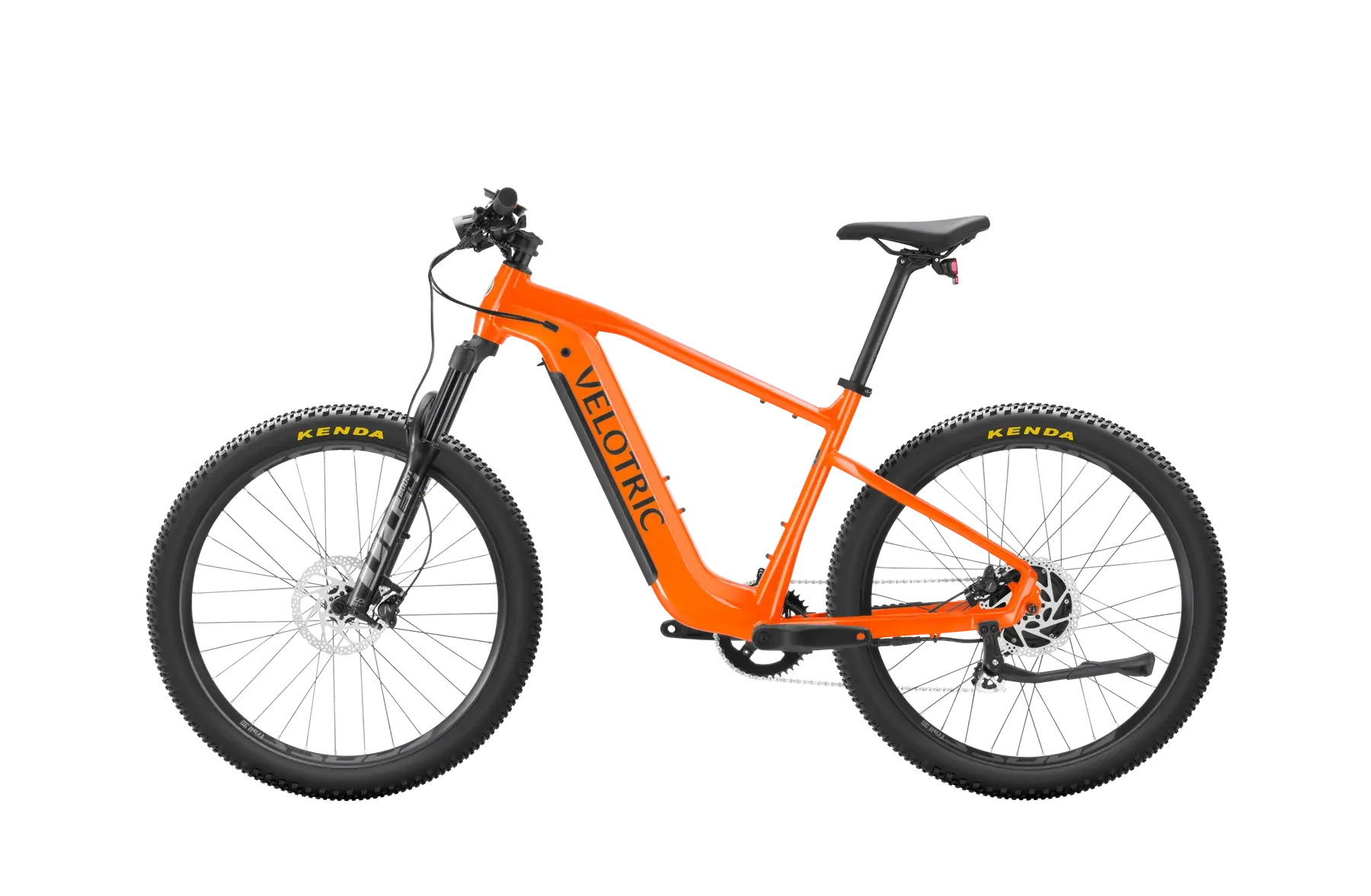

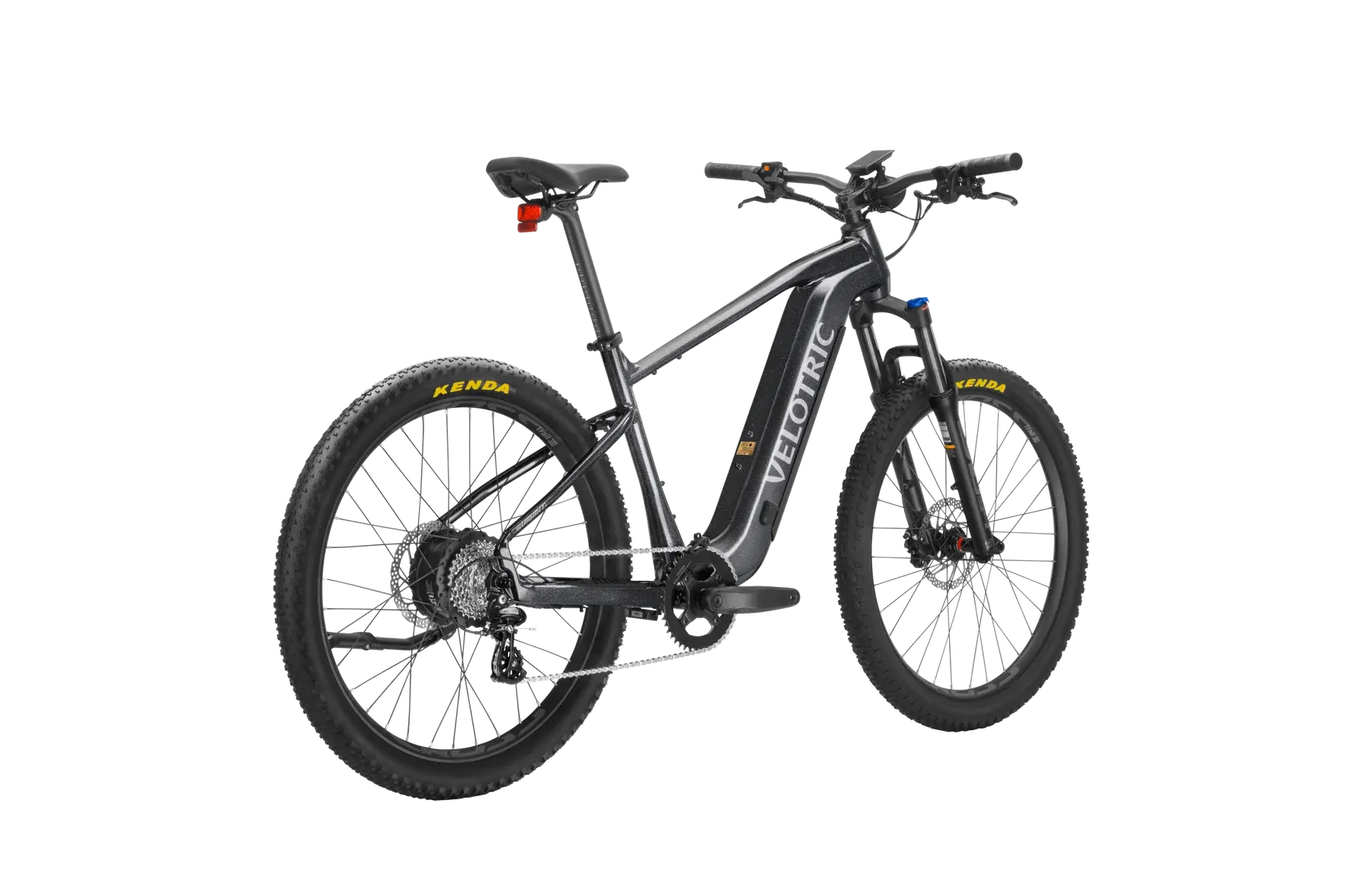

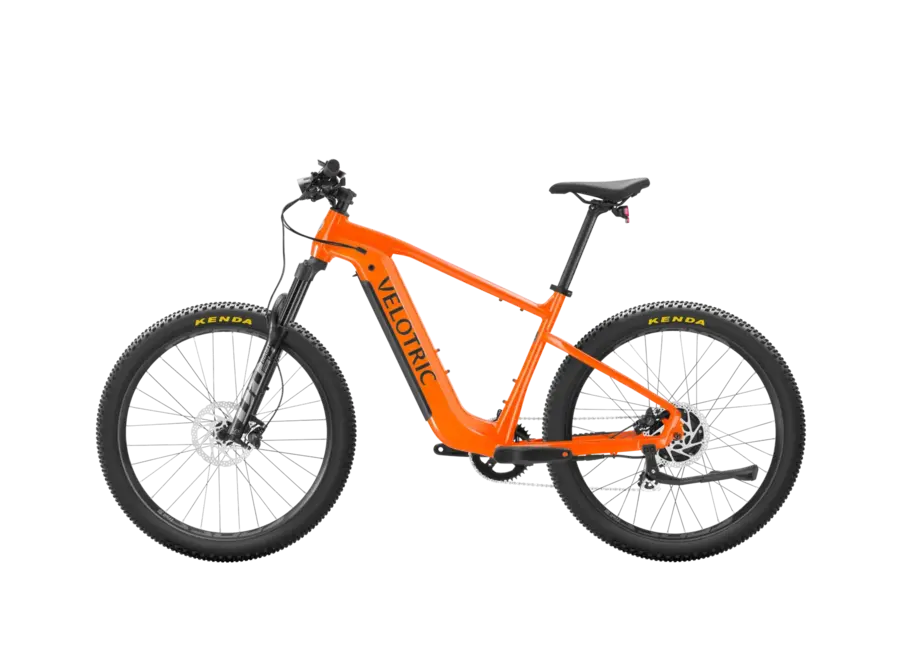

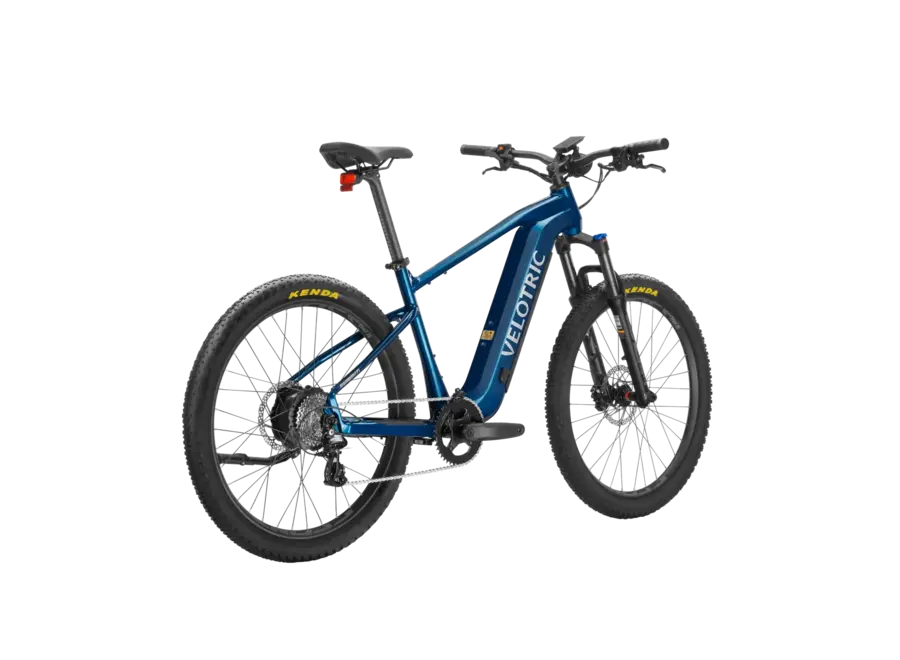

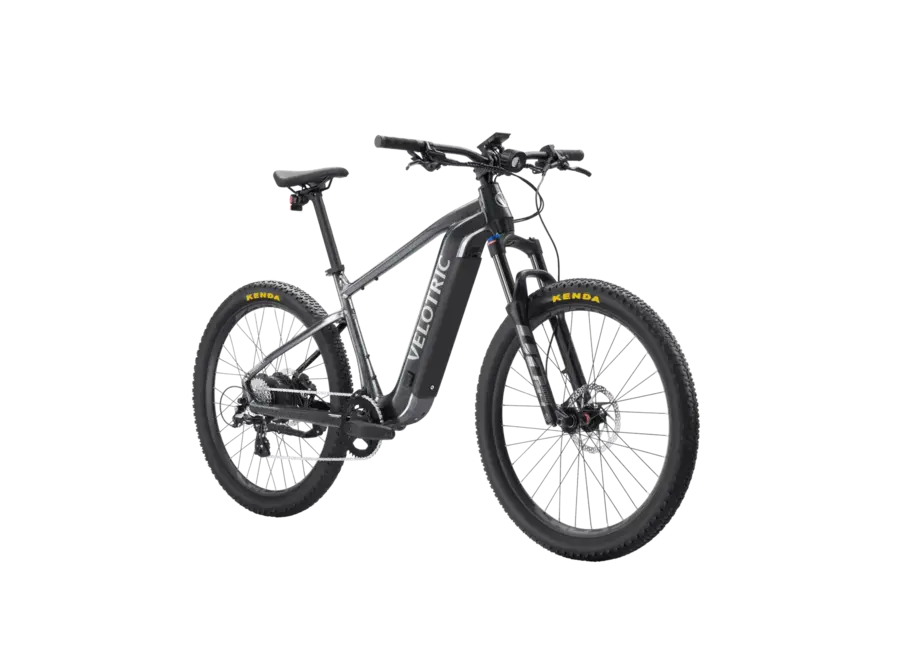

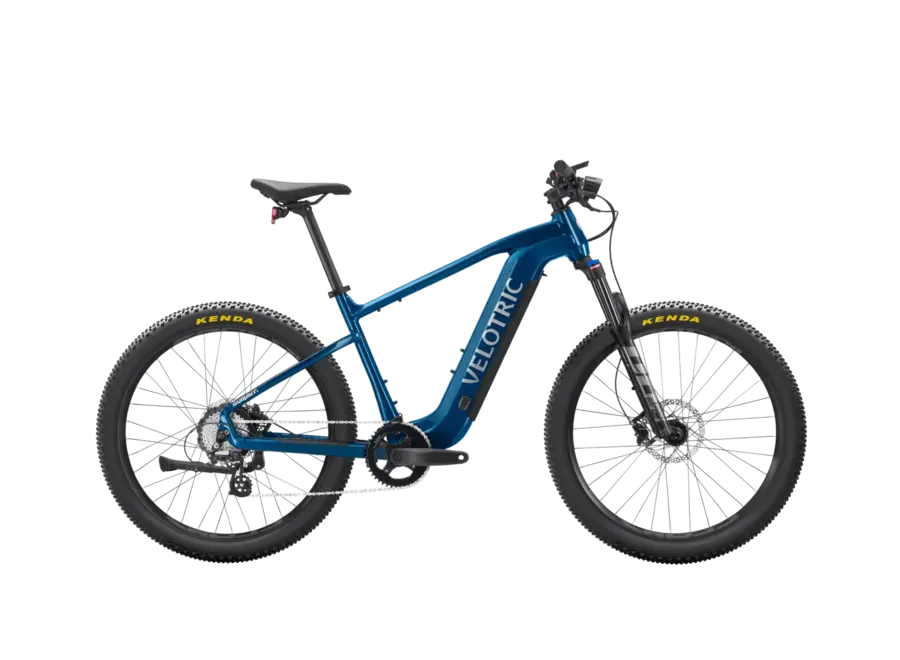

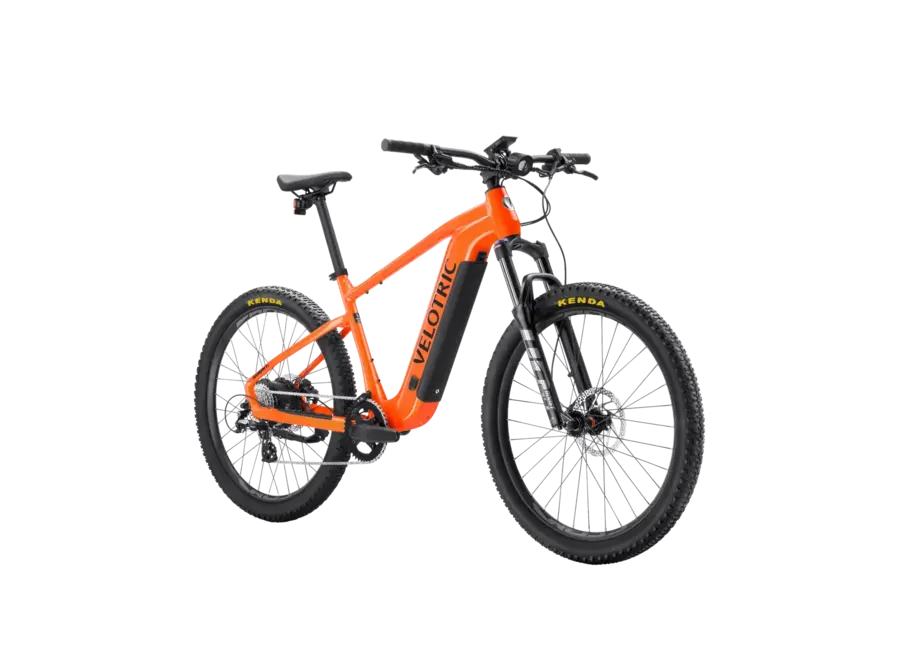

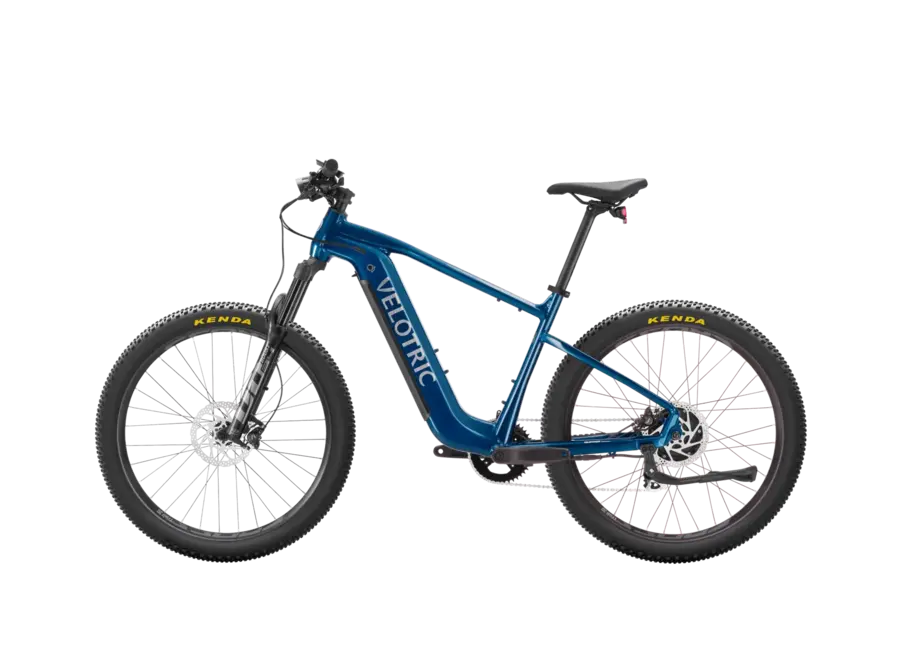

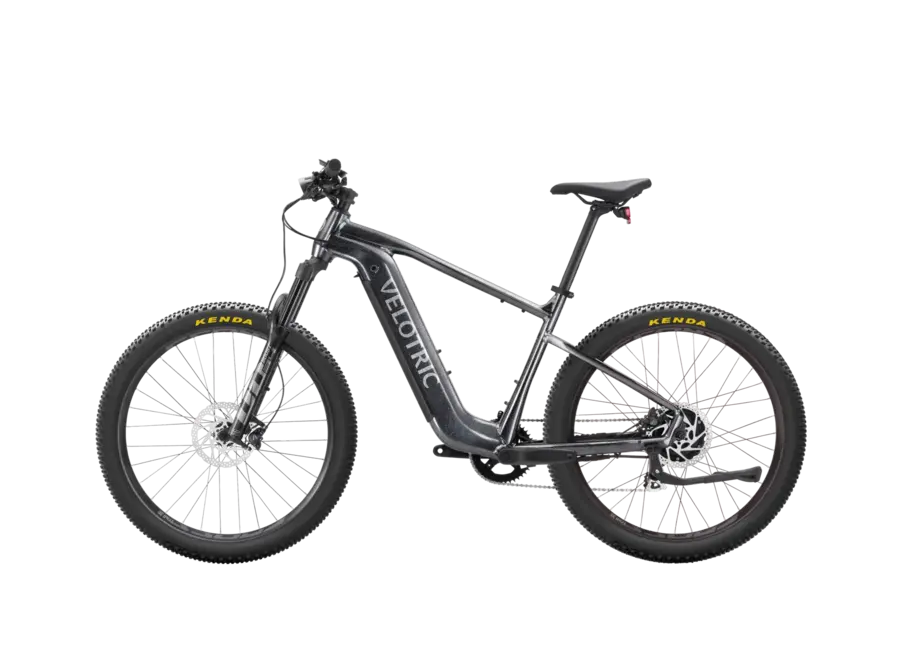

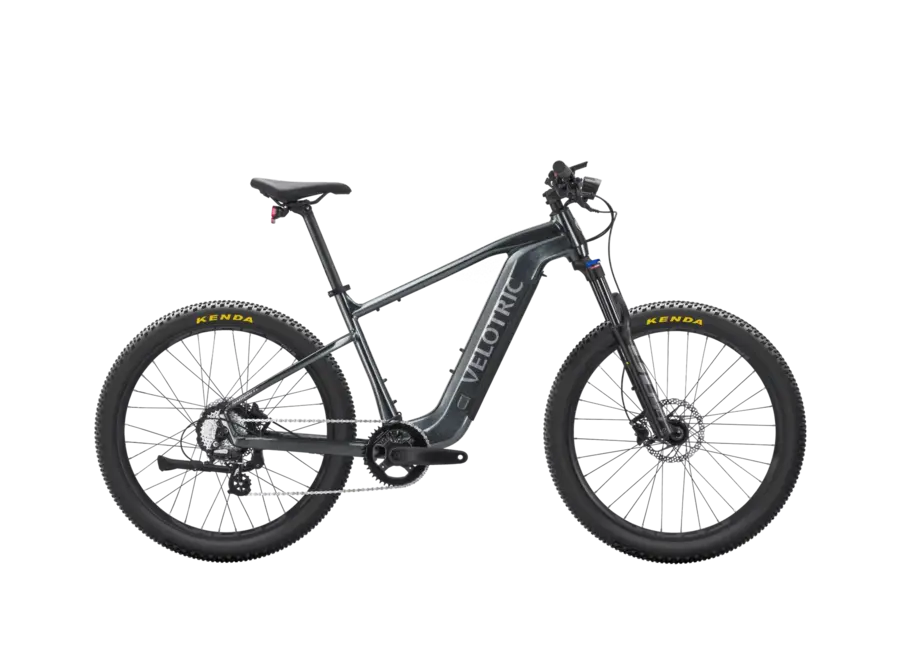

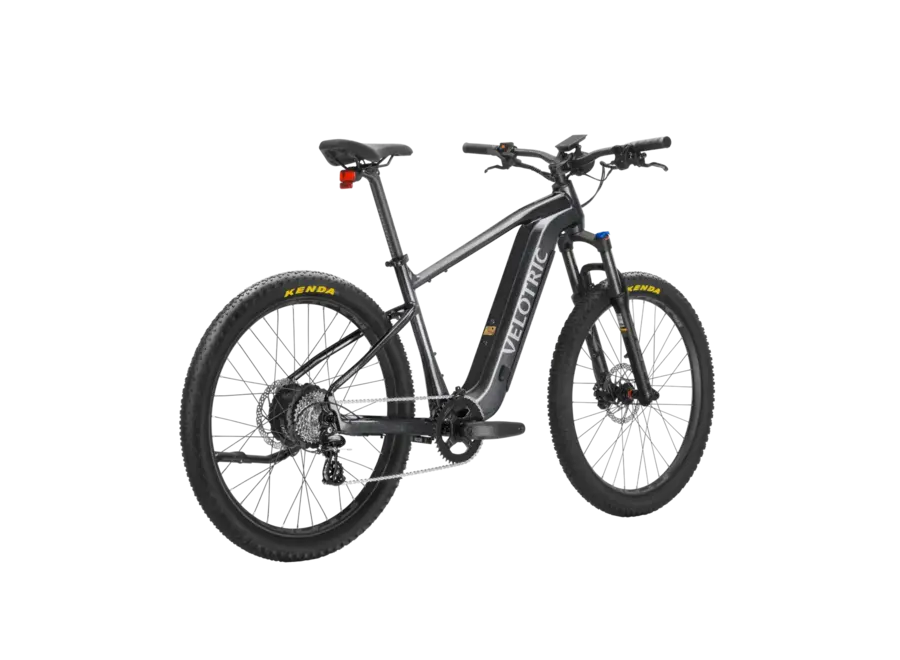

Velotric Summit 1 eMTB Ebike

Product description

Versatile power for every adventure.

TECHNICAL SPECIFICATIONS

Size Guide

Bike Size : Regular/Large

User Height Range : Regular: 5'1" ~ 5'10"/Large: 5'8" ~ 6'6"

Frameset

Frame : Triple-Butted Aluminum Alloy

Fork : Hydraulic suspension 120mm travel with Lock-out, 15x110mm thru-axle

Electronics

Motor : 48V, 750W, 90Nm

Battery : 48V, 705.6Wh, IPX7, Certificated by UL 2271

Cell : Samsung/LG 21700 cell, Certificated by UL 2580

Charger : 48V, 3A Fast Charger

Sensor : Torque sensor

Display : 2.8" Full color, high brightness, Bluetooth, adjustable angle

USB Port : USB Type-A phone charge

Security : Apple Find My™

Throttle : Trigger-control, removable

Pedal Assist : 3 Modes × 5 Levels

Walk Mode : 2.9 MPH

Front Light : Light sensing 130Lux high-output integrated LED, adjustable angle

Rear Light : Brake highlight, rear light steady/flash

Water Resistant : IPX6

Speed & Range

Max Speed (Default） : 20 MPH

Max Speed Adjustable Range : 12~28 MPH

Class : 1,2,3

Throttle Range : 60 Miles

Pedal Assist Range : 70 Miles

Drivetrain

Chainrings : BCD 104, 44T, narrow wide chainring

Crankset : Aluminum Alloy, 170mm

Cassette : 8-speed

Rear Derailleur : SHIMANO 8-speed

Shift Lever : SHIMANO 8-speed

Chain : KMC 8-speed

Brake

Brake : SHIMANO Hydraulic Disc Brake

Rotors : 180mm front and rear

Brake Levers : Aluminum Alloy, with power cutoff

Wheel

Rims : Double-wall Aluminum Alloy

Front Hub : NOVATEC Aluminum Alloy, 15x110mm thru-axle

Tire : Kenda 27.5x2.6" MTB puncture resistant tires

Cockpit

Handlebar : Aluminum Alloy, Φ31.8mm, 760mm (R)/780mm (L)

Grips : Velotric sports grips, lockable

Stem : Adjustable, Aluminum Alloy, φ31.8mm, 35mm (R)/50mm (L)

Saddle : VELOTRIC ergonomic seat

Seatpost : Aluminum Alloy, φ30.9mm, 350mm

Clamp : Aluminum Alloy, quick release

Supports

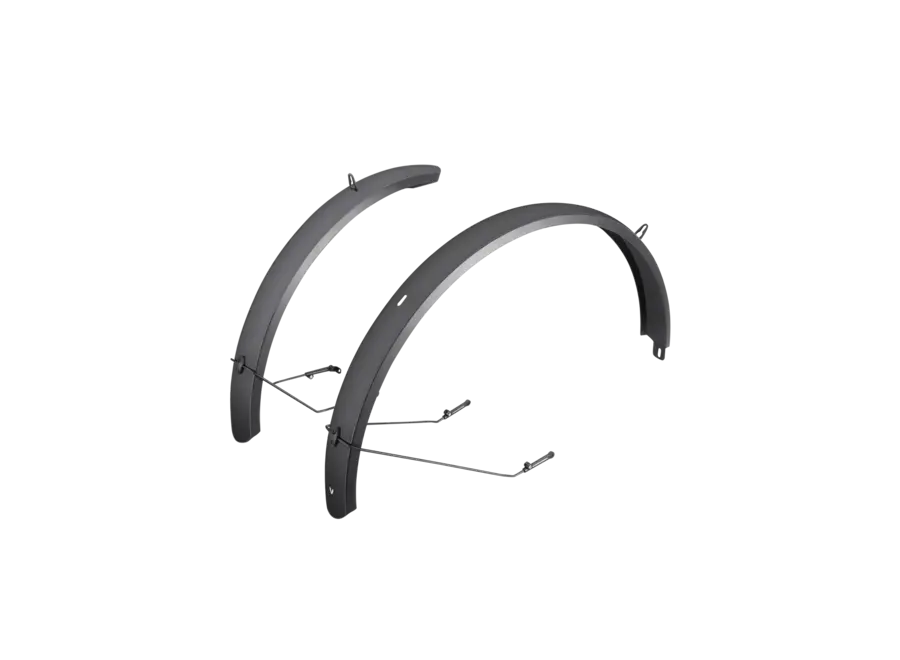

Fenders : Optional

Rear Rack : Optional

Pedals : Aluminum Alloy

Kickstand : Aluminum Alloy, included, rear mount

Weight & Load

Bike Weight : 62lbs

Max Bike Load Capacity : 440lbs

Certification

UL Certification : UL 2849

ISO Standard : ISO 4210
