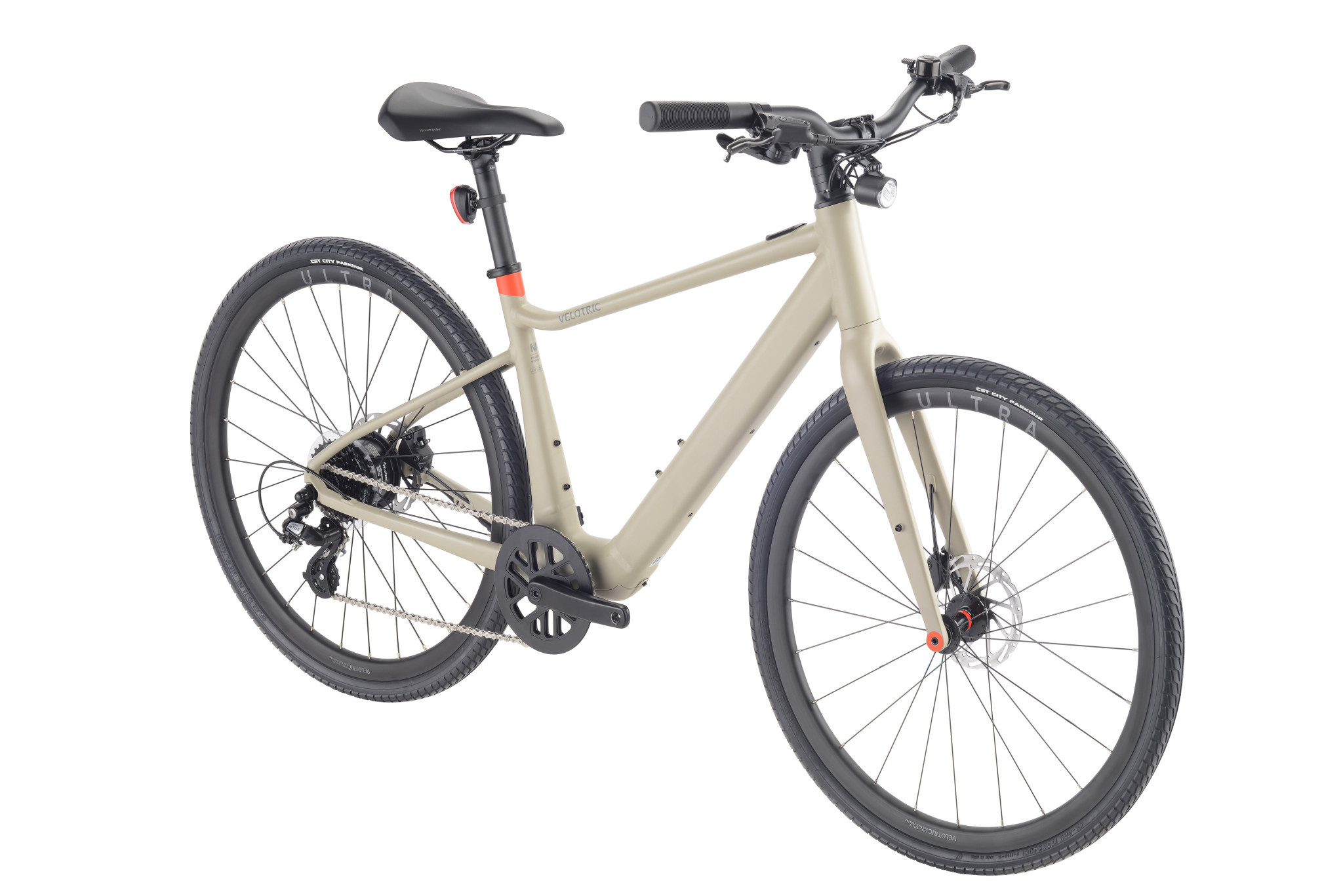

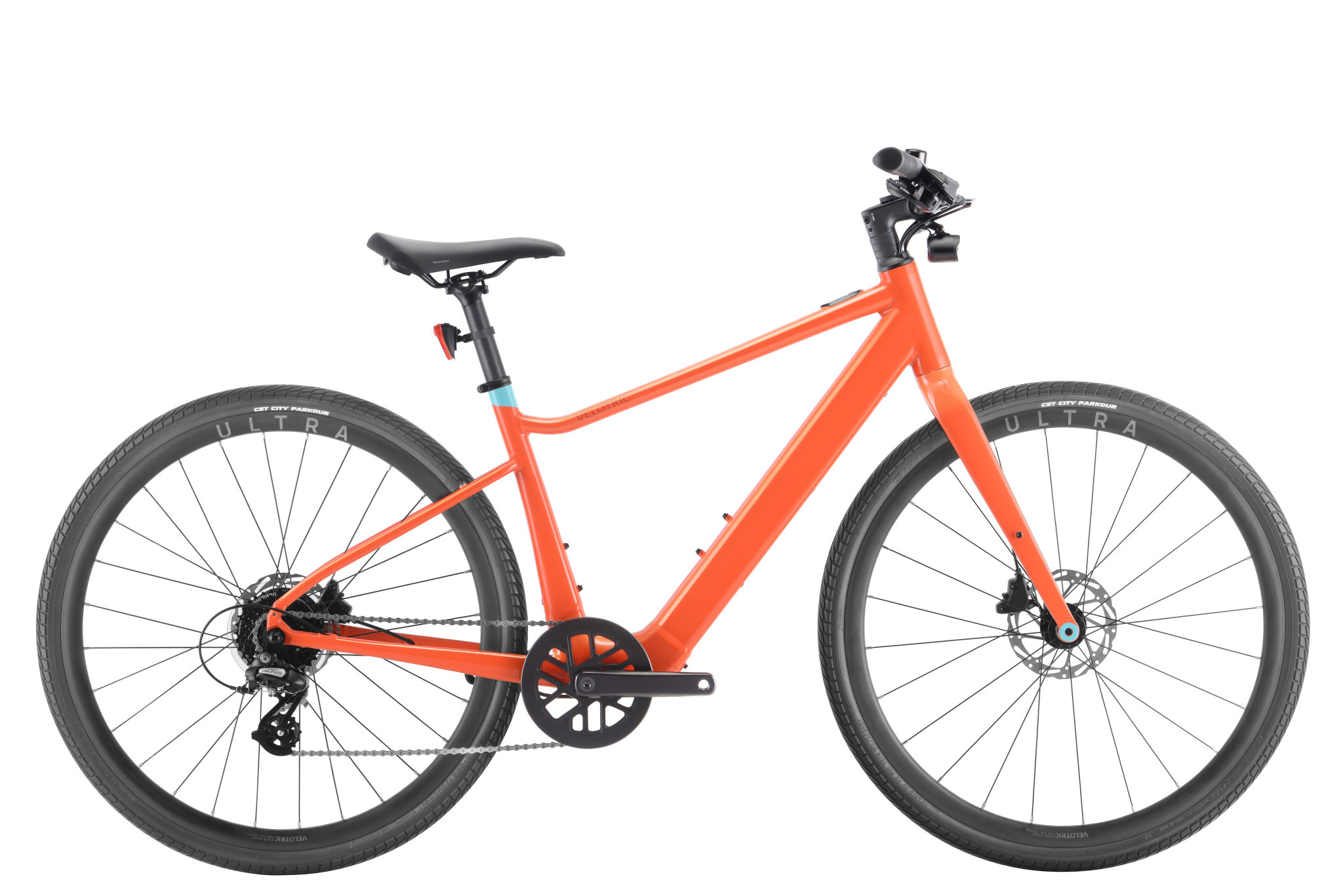

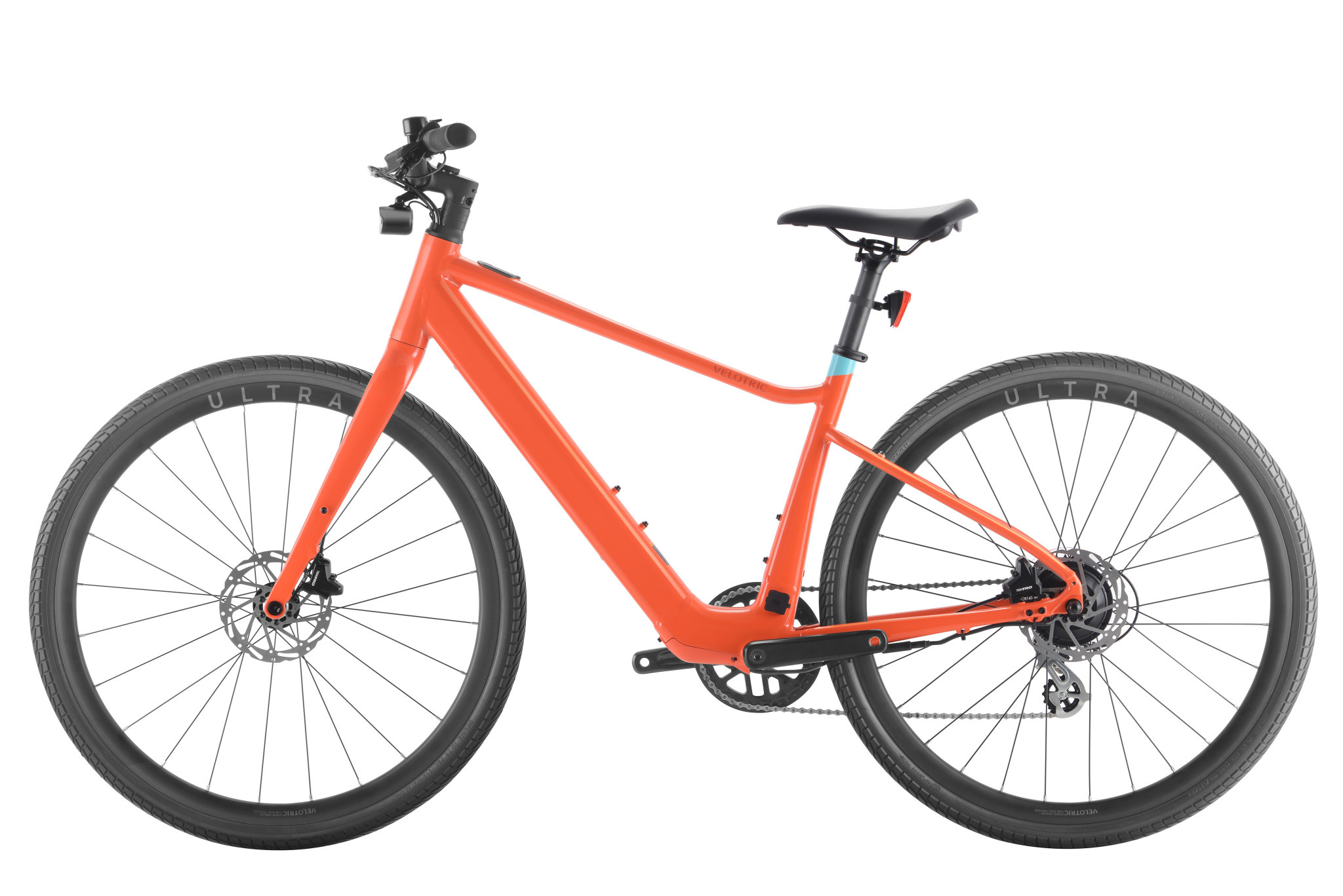

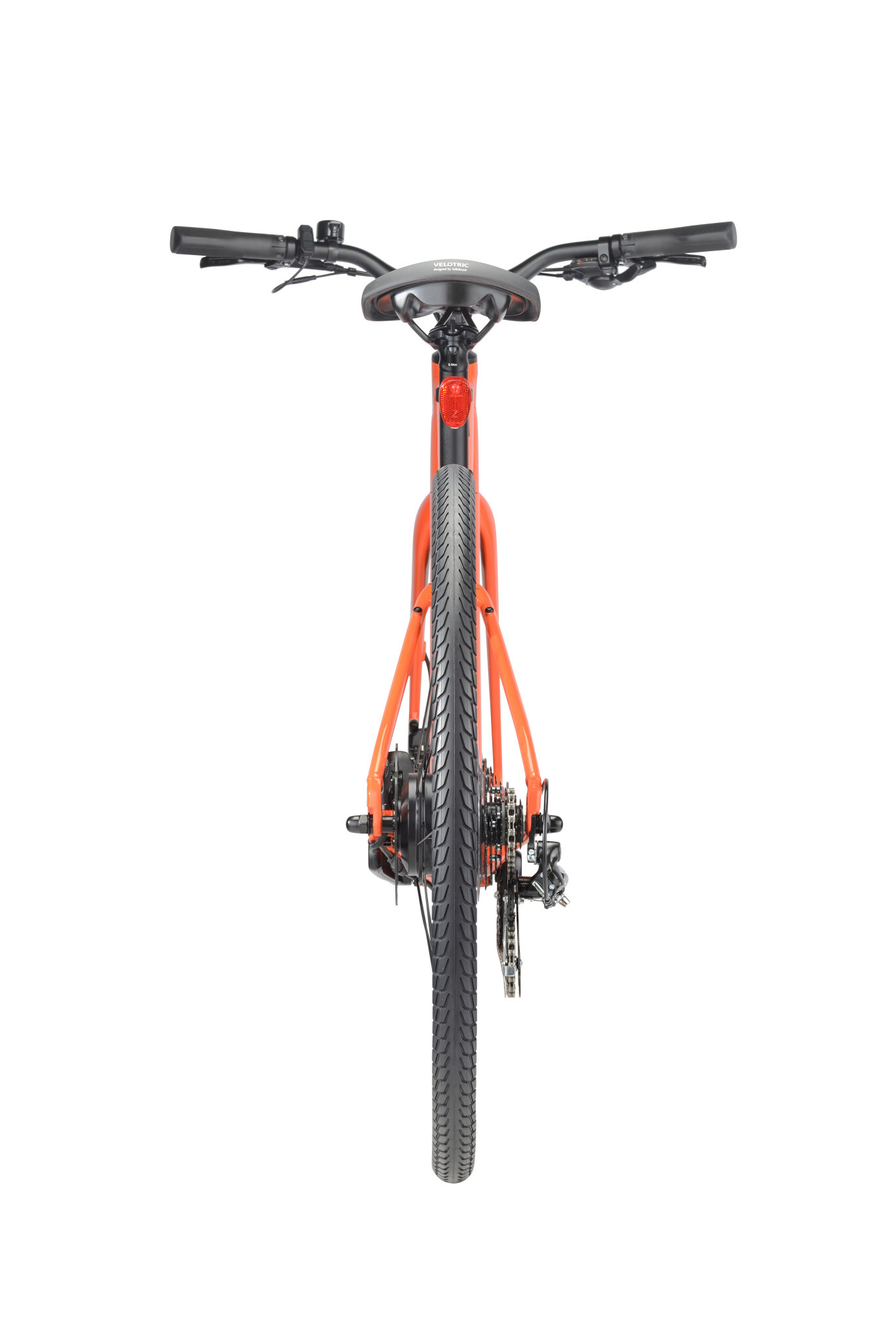

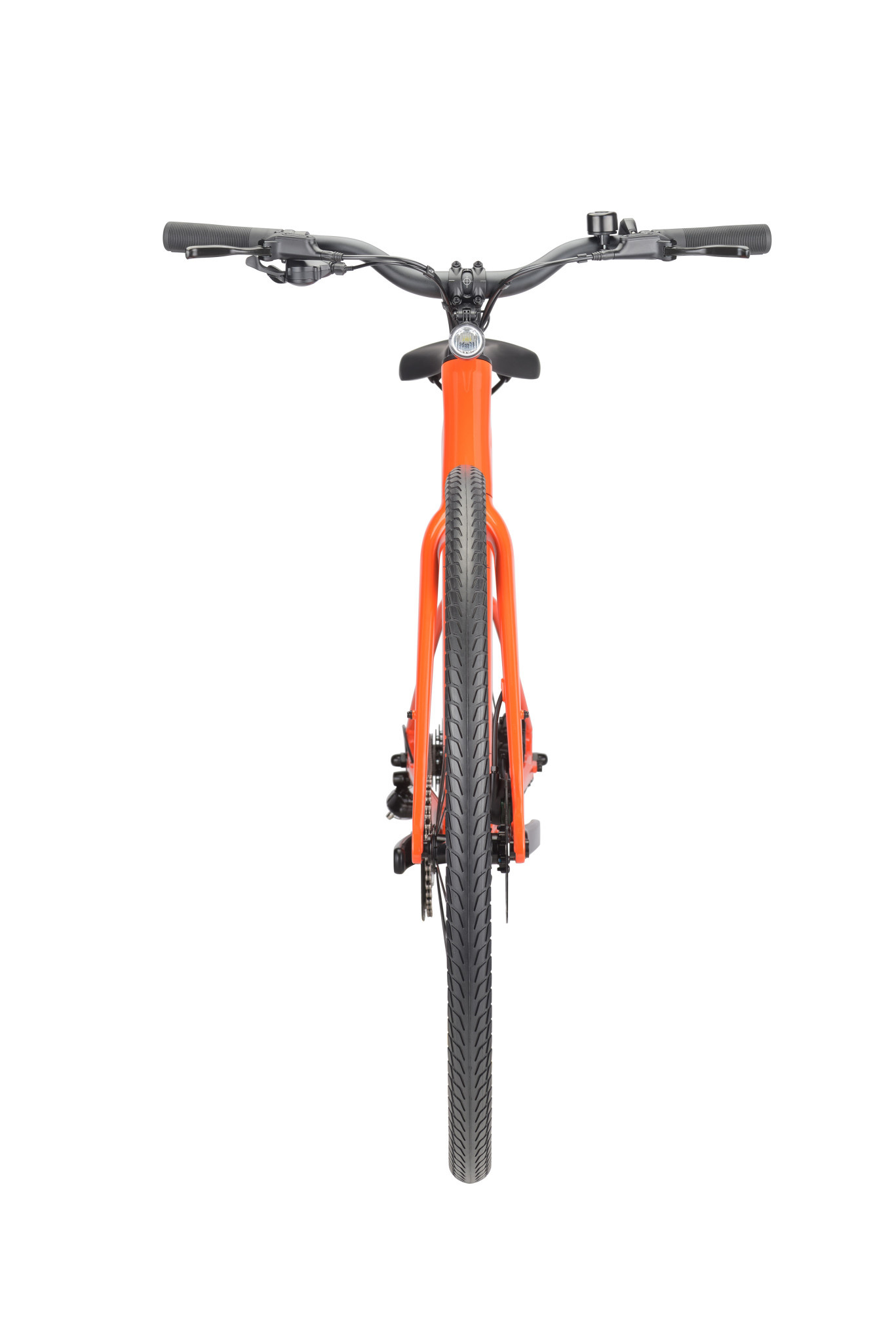

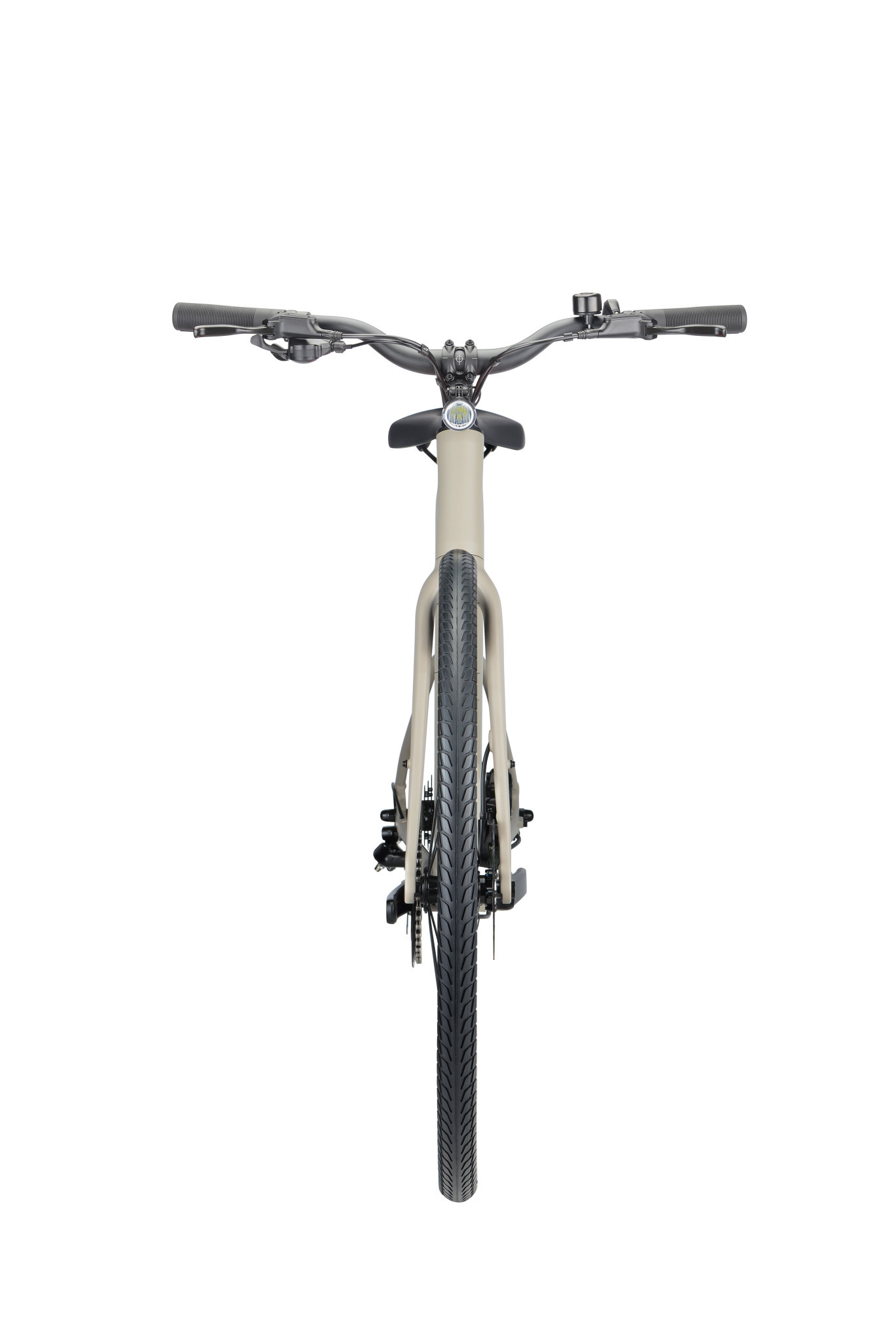

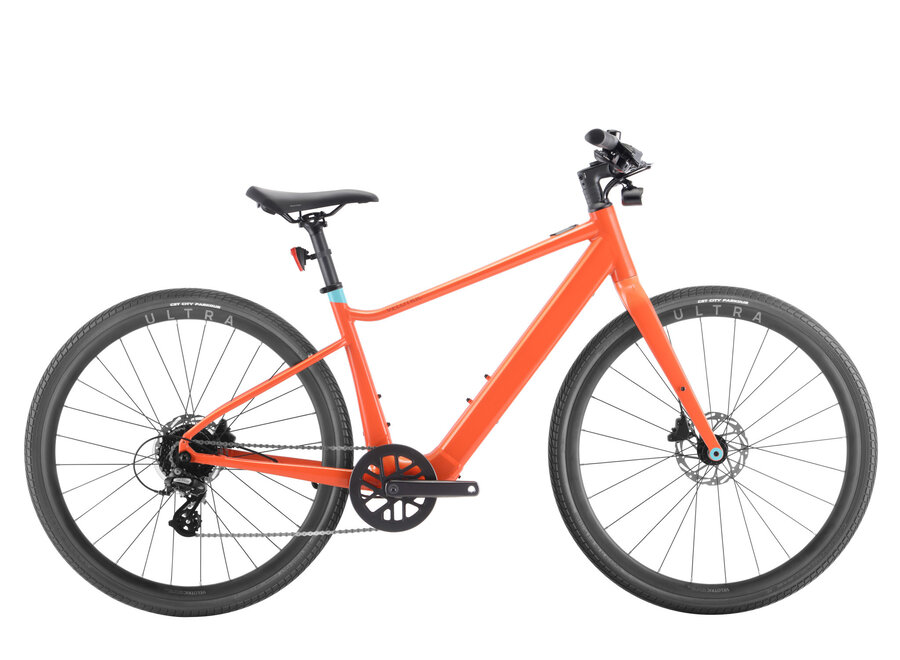

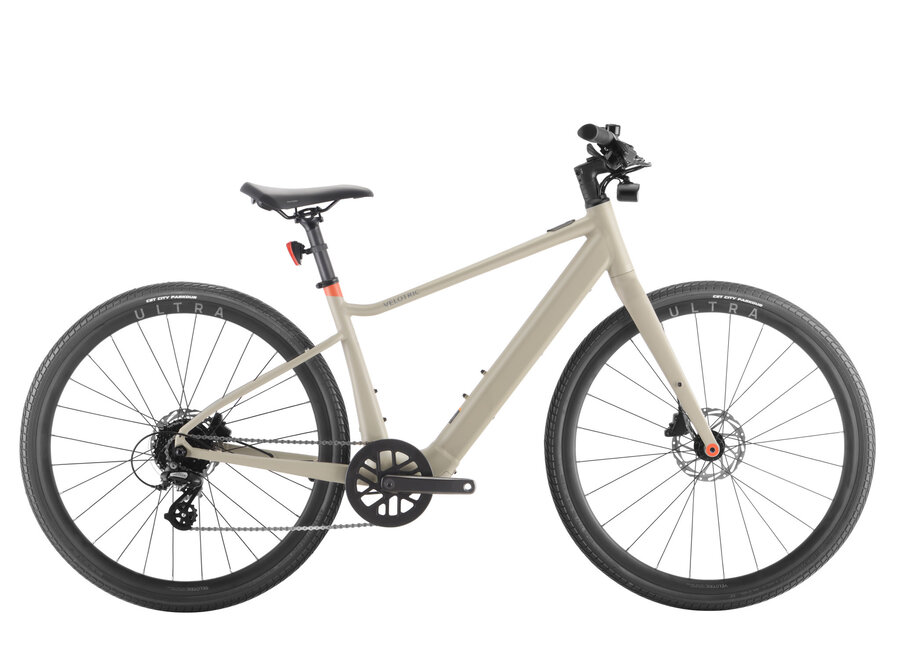

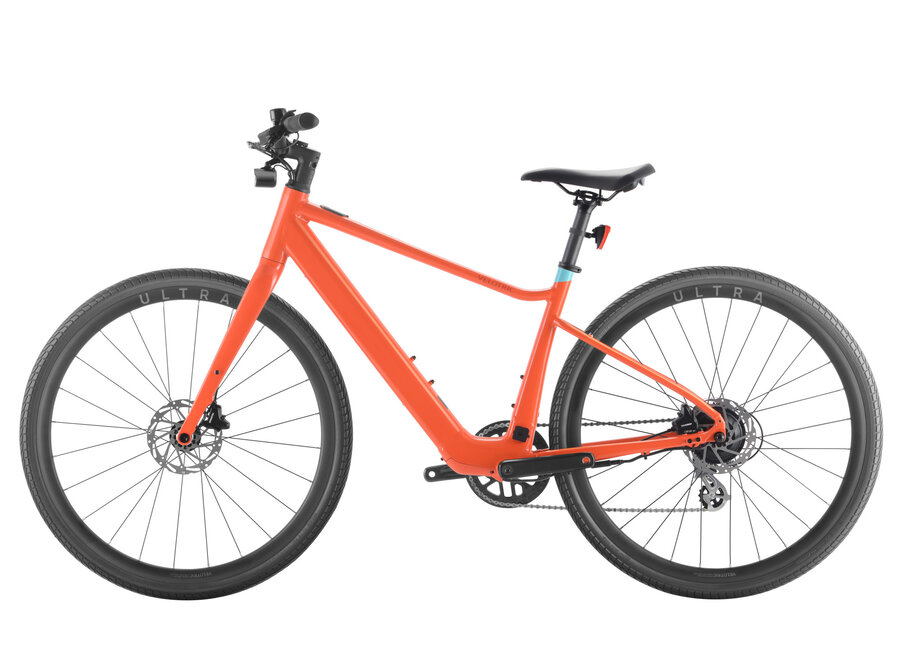

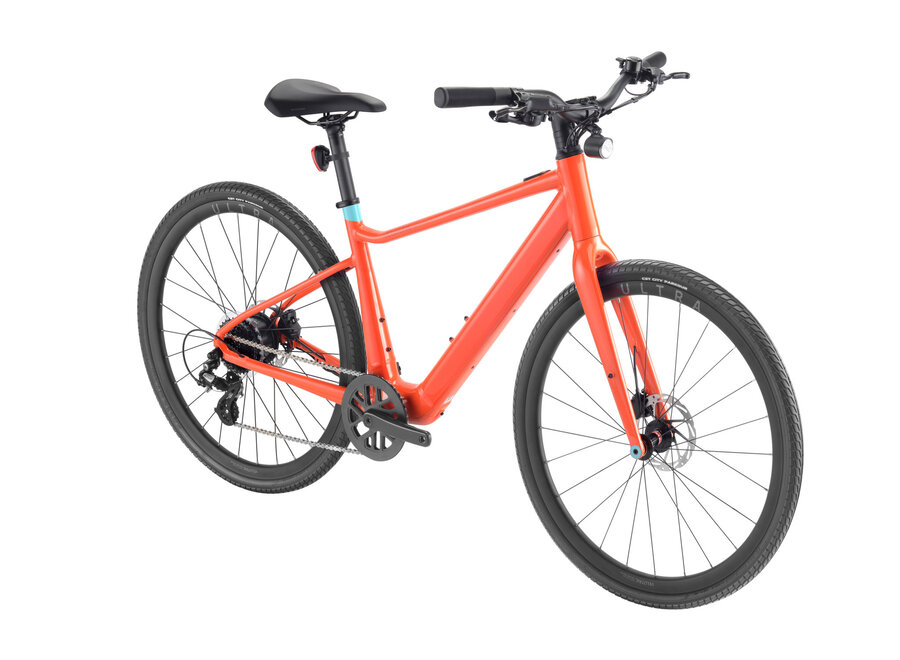

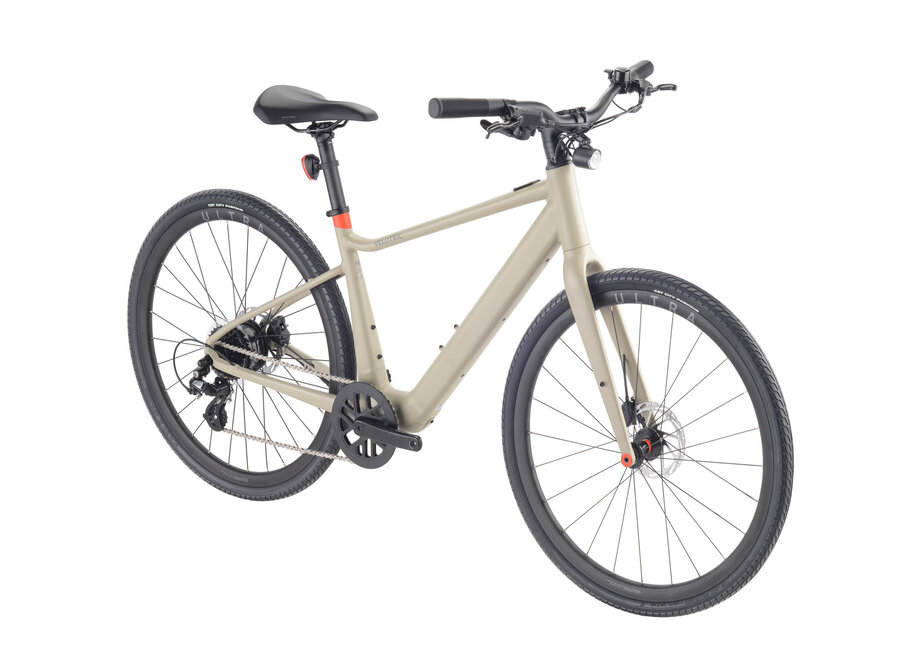

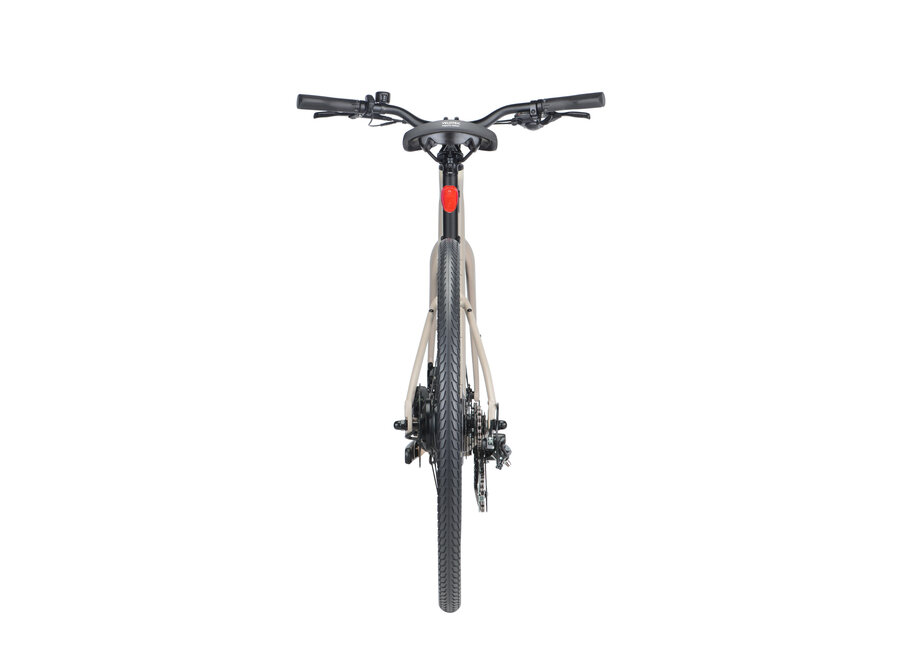

Velotric T1 ST Plus Urban Ebike

Product description

Size Guide
Bike Size - Regular/Large
User Height Range - Regular: 4'11" ~ 5'9"/Large: 5'6" ~ 6'4"

Frameset
Frame - 6061 Triple-butted Aluminum alloy frame
Fork - 6061 Aluminum alloy, internal brake routing, 12x100mm thru-axle

Electronics
Motor - 350W, Peak 600W, 40Nm
Battery - 36V, 352.8Wh, IPX7, Certificated by UL 2271
Cell - Samsung/LG 21700 cell, Certificated by UL 2580
Charger - 36V, 2A
Sensor - Torque sensor
Display - 1.8" Full color, high brightness, Bluetooth, adjustable angle
USB Port - USB Type-A phone charge
Pedal Assist - 3 Riding Modes x 5 PAS Levels
Walk Mode - 2.9 MPH
Front Light - High output integrated LED, 60Lux, adjustable angle
Rear Light - LED light
Water Resistant - IPX6

Speed & Range
Max Speed (Default) - 20 MPH
Max Speed Adjustable Range - 12~28 MPH
Class - 1/3
Pedal Assist Range - 70 Miles

Drivetrain
Chainrings - 46T
Crankset - Aluminum Alloy, 170mm
Cassette - 8-speed
Rear Derailleur - SHIMANO 8-speed
Shift Lever - SHIMANO 8-speed
Chain - KMC 8-speed

Brake
Brake - TEKTRO Hydraulic Disc Brake
Rotors - 160mm front and rear
Brake Levers - Aluminum Alloy

Wheel
Rims - Double-wall Aluminum Alloy
Front Hub - NOVATEC Aluminum Alloy, 12x100mm thru-axle
Tire - KENDA 700×40c eBike puncture resistant tires

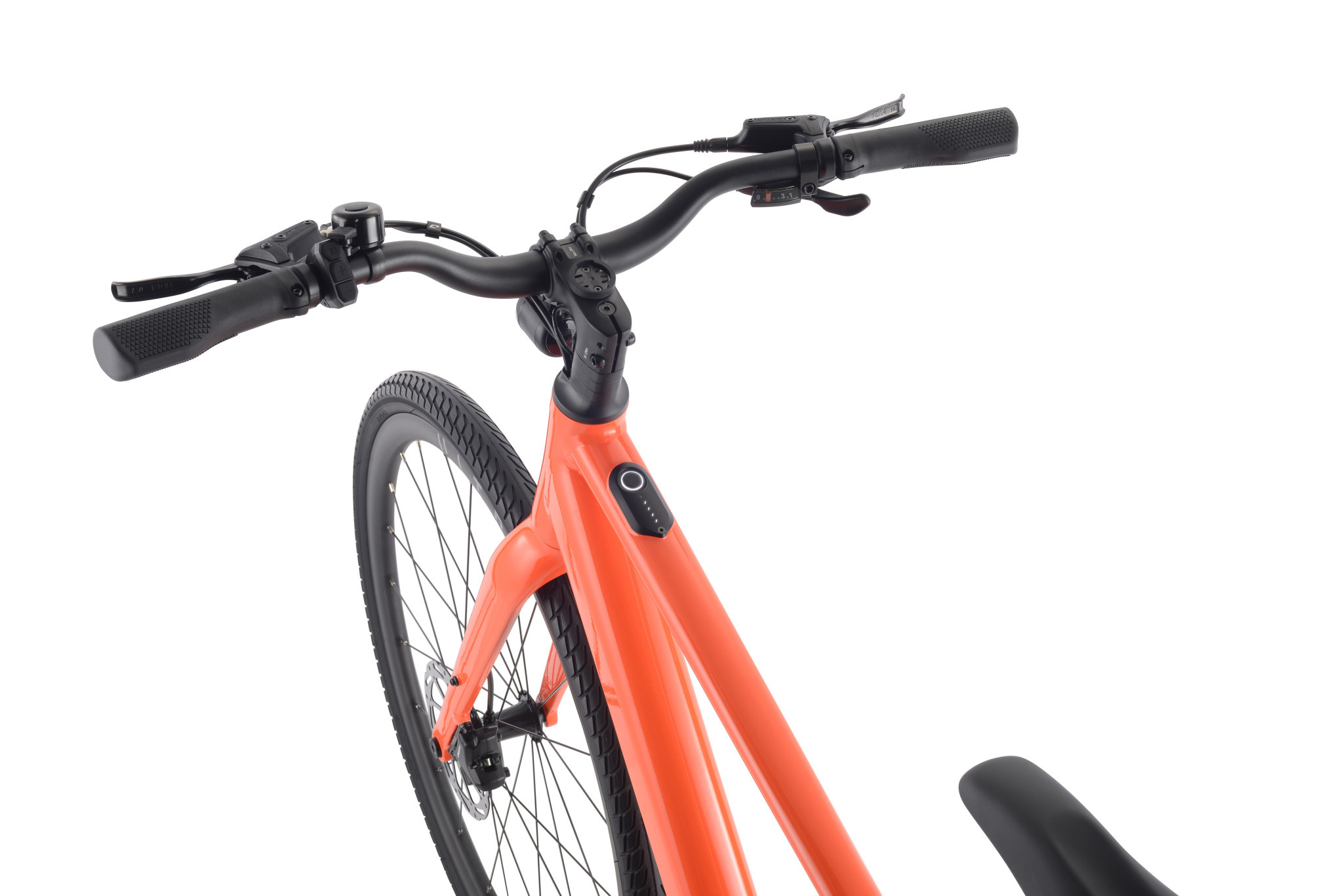

Cockpit
Handlebar - Aluminum Alloy, Φ31.8mm, 660mm
Grips - VELOTRIC ergonomic comfort grips
Stem - Adjustable, Aluminum Alloy, φ31.8mm, 60mm
Saddle - VELOTRIC urban comfort ergonomic seat
Seatpost - Aluminum Alloy, φ30.9mm, 350mm
Clamp - Aluminum Alloy

Supports
Pedals - Plastic
Kickstand - Aluminum Alloy, included, rear mount

Weight & Load
​Bike Weight - 39lbs
​Max Bike Load Capacity - 330lbs
​

Certification
UL Certification
UL 2849
ISO Standard
ISO 4210
